RS PRO

Buying Guide

Thermocouples

Click a range to view online

1-1

Thermocouples

A thermocouple is a device which measures temperature. It is made up of two wires of different metals that, when joined together, create an electrical junction. When the temperature changes at this junction it creates a voltage which can be interpreted to read the temperature. This is also known as the Seebeck effect.

Features

• Type J, K and T
• Temperature Range: -148°F to 2282°F
• Multiple connection types including Miniature Plug/Socket and wire
• Variety of wire colors combinations

Application

• Thermostats
• Hospital thermometers
• Vehicle diagnostics
• Boiler/heating sensors
• Oven safety features
• Food thermometers
• Industrial probes/sensor
• Ideal tools for temperature measurement
• Robust yet affordable solutions

Associated products

1-1

Thermocouple & Probe Accessories

These thermocouple plugs and accessories are ideal for connecting your thermocouple probe or wire terminals to extension or compensating cables.

Features

• Adapters, Connectors, Plugs & Sockets for many thermocouple types
• Probes and Accessories
• Compression Glands

Application

• To be used in any application where thermocouples are installed, extended or replaced
• Measure a wide range of temperatures

1-2

Resistance Temperature Detectors (RTD)

Resistance temperature detectors are high-quality temperature sensors used for accurate temperature measurement. They are ideal in industries where precise measurement and control, often at extreme temperatures, is crucial.

Features

• Temperature Range: -328°F to 1202°F
• Termination Types: Cable, Cable Gland, Connection Head, Lead Wire, Solder

Application

Our latest addition of PT100 sensors includes a fantastic hygienic range which is ideally suited for dairy, brewery and pharmaceutical applications.

1-3

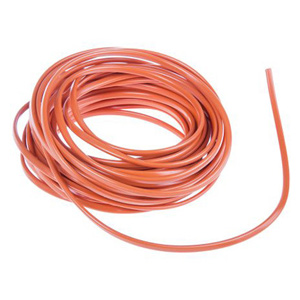

Thermocouple Wire

Thermocouple extension wire is a hardwearing type of wire used for connecting a thermocouple probe to a readout instrument.

Features

• Variety of types including J, JX, K, and KX
• Lengths ranging from 3 to 650 ft
• Temperature Range: -103°F to 2192°F

Wire Types
• Flat
• Solid Wire
• Twisted

Application

• Extension Wire: extend distance between a thermocouple probe and the instrument reading the signal (only - cannot be used in a thermocouple's sensing point)
• Grade Wire: make the sensing point of the thermocouple

RS PRO

Buying Guide

Electrical Enclosures

Click a range to view online

2-1

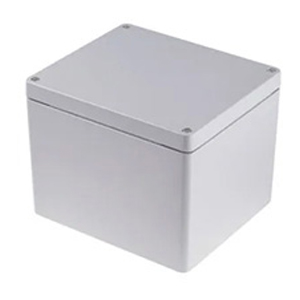

Electrical Enclosures

Enclosures are present in almost every industry and can store all manor of items, such as medical equipment or electronics. These boxes are rated at IP66 and provide an excellent degree of protection, indoor or outdoor.

Features

• Desktop, Wall and Panel Mounting options
• NEMA 4X and 6P Rating
• Variety of sizes and options
• Multiple color options including gray and black

Application

• Building electrical and telecommunication rooms
• Manufacturing plants
• Utilities
• Industrial Applications

Associated products

2-1

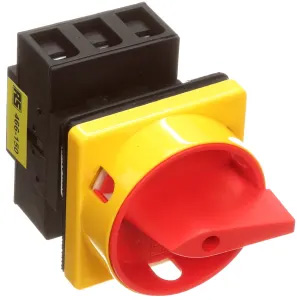

Non-Fusible Disconnect Switches

High quality range of non-fusible disconnect switches for use with low voltage switchgear such as power distribution, load isolation and motor start/stop for Panel/Enclosure applications.

Features

• All Switch ratings at AC22
• 2 to 8 pole options in the range
• Application from 20A to 125A
• IP65 protection
• UL and CSA Approved

Application

• Panel/Enclosure power/load isolation
• Motors stop/start

2-2

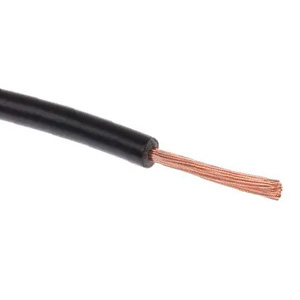

Hook-Up Wire

Hook up wire can be used for internal wiring of electrical and electronic equipment. Hook-up wire is in the family of lead wire that may be used for low-voltage, low current applications and is a single insulated conductor.

Features

• 3 AWG to 28 AWG wire sizes in the range
• Many color options
• Up to 6kV rated wire available
• Applications from 2A to 136A

Application

• Control Panels and Meters
• Automotive build
• Wiring Computers and appliances
• Electronic Equipment

2-3

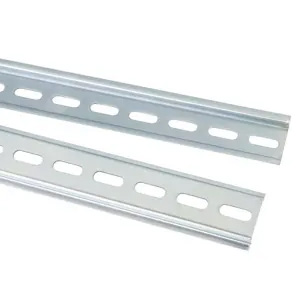

DIN Rails

DIN rail is a metal rail of a standard type widely used for mounting circuit breakers and industrial control equipment inside equipment racks. These products are typically made from cold rolled carbon steel sheet with a zinc-plated or chromated bright surface finish.

Features

• Steel or zinc plated steel options
• 7.5mm (0.3") or 15mm (0.6") heights
• Comes in 6 ft length

Application

Mounting DIN-rail mounted devices including circuit breakers and industrial control equipment inside racks/enclosures

RS PRO

Buying Guide

Crimp Terminals

Click a range to view online

3-1

Crimp Terminals

From crimp ring terminals to bootlace ferrules and butt splices, we stock a wide range of electrical terminals and splices for use with varying wire types and sizes.

Features

• Multiple Terminal sizes to work with a variety of wire and cable
• Wide array of termiation options including ring and tab
• Insulated and uninsulated options avaiable in multiple colors

Application

• Control Panels
• Automotive build
• Telecommunications
• Prototyping
• Electronics and Engineering
• Test & Measurement

Associated products

3-1

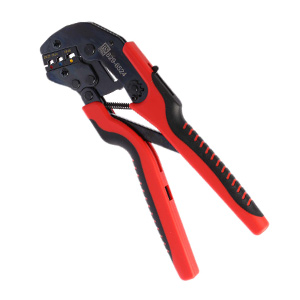

Crimpers

A crimping tool is used to join or connect two pieces of material together by compression, squeezing one or both of the materials to form a bond or seal.

Features

• Multiple crimper options to work with a variety of crimp terminals wire and cable
• Precision eccentric adjustment for consistent performance and ability to calibrate

Application

• Connect components together quickly

3-2

Hook-Up Wire

Hook up wire can be used for internal wiring of electrical and electronic equipment. Hook-up wire is in the family of lead wire that may be used for low-voltage, low current applications and is a single insulated conductor.

Features

• 3 AWG to 28 AWG wire sizes in the range
• Many color options
• Up to 6kV rated wire available
• Applications from 2A to 136A
• UL approved

Application

• Control Panels
• Automotive build
• Meters
• Wiring Computers and appliances
• Electronic Equipment

3-3

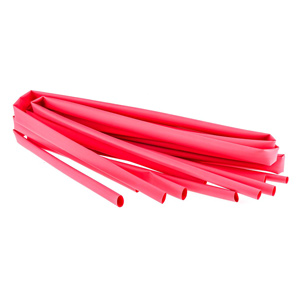

Heat Shrink Tubing

Heat shrink tubing is a type of extruded plastic tube that reduces in size when heated to a pre-determined shrink ratio to fit a specific application.

Features

• All standard Colors
• Shrink diameter up to 2.6”
• Available in adhesive and non adhesive lined
• 1:1, 2:1 and 3:1 shrink ratio
• Flame retardant

Application

• Electrical insulation
• Strain relief
• Wire bundling
• Environmental and mechanical protection
• Identification

RS PRO

Buying Guide

Non-Fusible Disconnect Switches

Click a range to view online

4-1

Non-Fusible Disconnect Switches

High quality range of non-fusible disconnect switches for use with low voltage switchgear such as power distribution, load isolation and motor start/stop for Panel/Enclosure applications.

Features

• All Switch ratings at AC22
• 2 to 8 pole options in the range
• Application from 20A to 125A
• IP65 protection
• UL and CSA Approved

Application

• Panel/Enclosure power/load isolation
• Motors stop/start

Associated products

4-1

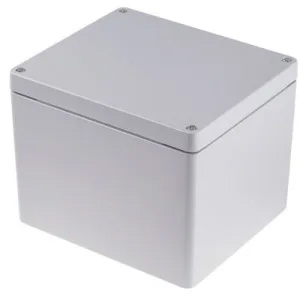

Electrical Enclosures

Enclosures are present in almost every industry and can store all manor of items, such as medical equipment or electronics. These boxes are rated at IP66 and provide an excellent degree of protection, indoor or outdoor.

Features

• Desktop, Wall and Panel Mounting options
• NEMA 4X and 6P Rating
• Variety of sizes and options
• Multiple color options including gray and black

Application

• Building electrical and telecommunication rooms
• Manufacturing plants
• Utilities
• Industrial Applications

4-2

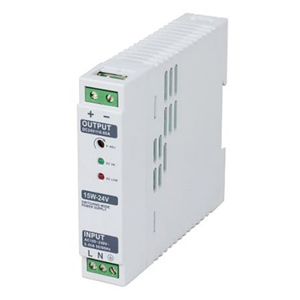

Power Supply (AC-DC Power Supplies)

The power supplies provide parallel operation, over voltage protection and overcurrent protection. There is an LED inductor for power status, PFC options and the power supply is certified to UL.

Features

• DIN Rail Mounted
• Interchangeable Plug-in Power Supplies
• Encapsulated Power Supplier
• Desktop Power Supplies
• RS PRO Switch Mode Power Supplies

Application

• Process control
• Factory automation
• Traffic and transportation system
• Other industrial applications

4-3

Hook-Up Wire

Hook up wire can be used for internal wiring of electrical and electronic equipment. Hook-up wire is in the family of lead wire that may be used for low-voltage, low current applications and is a single insulated conductor.

Features

• 3 AWG to 28 AWG wire sizes in the range
• Many color options
• Up to 6kV rated wire available
• Applications from 2A to 136A
• UL approved

Application

• Control Panels
• Automotive build
• Meters
• Wiring Computers and appliances
• Electronic Equipment

RS PRO

Buying Guide

Rectangular Lead Acid Batteries

Click a range to view online

5-1

Rectangular Lead Acid Batteries

Lead acid batteries are the oldest type of rechargeable battery. Despite having a very low energy-to-weight ratio and a low energy-to-volume ratio, they are able to supply high surge currents. The oxygen in the active material (lead dioxide) reacts with the hydrogen ions to form water, and the lead reacts with sulphuric acid to form lead sulphate. The ions moving through the electrolyte then create the current flow.

Features

• Voltage 6 and 12 V
• Multiple termination options including both Faston and T12
• Low gas emissions 99% plus recombination
• Excellent recovery from deep discharge

Application

• Storage in back-up power supplies for mobile phone towers (high current)
• Starting motor vehicles (high current)
• Uninterruptible power supplies (UPS)
• Emergency Lighting
• Medical Equipment

Associated products

5-1

Multiconductor Cables

These flexible cables offer various degrees of protection against electrical interference and resistance to caustic substances and oils.

Features

• AWG Range: 9-30
• Length ranging from 16 feet to 1900 feet
• UL Approved

Application

• General purpose wiring circuits
• Control circuits
• Internal appliance wiring
• Switchgear wiring

5-2

Electrical Enclosures

Enclosures are present in almost every industry and can store all manor of items, such as medical equipment or electronics. These boxes are rated at IP66 and provide an excellent degree of protection, indoor or outdoor.

Features

• Desktop, Wall and Panel Mounting options
• NEMA 4X and 6P Rating
• Variety of sizes and options
• Multiple color options including gray and black

Application

• Building electrical and telecommunication rooms
• Manufacturing plants
• Utilities
• Industrial Applications

5-3

Multimeters

A digital multimeter is a device that provides measurements of circuit parameters such as voltage (volts), currents (amps) and resistance (ohms).

Features

• LCD
• LED
• Milliohm Meter
• Voltage Range: 300-1000 VAC/DC
• Current Rating: 1 kA to 600 A

Application

Measuring AC Current, AC Voltage, Capacitance, Conductance, Continuity, Current, DC Current, DC Voltage, Diode or Diode Test, Duty Cycle, Frequency, Harmonics or Total Harmonic Distortion, and much more.

RS PRO

Buying Guide

Telecom Connectors

Click a range to view online

6-1

Telecom Connectors

Network and telecom connectors include the popular RJ–the acronym stands for Registered Jack–connectors, which are used to transmit data and to provide telephony services all over the world. The connectors include designs that are intended for very rugged use, and designs that are intended for everyday use in environments such as offices.

Features

• Range of adaptors and sockets for RJ45 and RJ11 connections
• Panel, PCB and press fit installation options
• 2-26 contact versions available
• Gold plated options included in the range

Application

• Office networking
• Electronic circuit boards
• Industrial Networking including PLC's
• PC hardware, including printers, docking stations
• Medical hardware

Associated products

6-1

Network (Cat 5/6) Cables

A range of Cat 5/6 cables perfect for network connections within the home, office spaces or any area requiring a reliable and high performing internet connection. All models are highly reliable and excellent quality.

Features

• Available in a variety of colors
• Lengths from 1.5Ft to 100Ft
• UTP and FTP shielding versions available
• Large range of Low Smoke Zero Halogen options

Application

• Office Computer Hardware
• Data Centers
• PLCs
• Industrial Networking

6-2

RF Connectors

A coaxial RF connector (radio frequency connector) is designed to work at radio frequencies in the multi-megahertz range an to maintain the shielding that the coaxial design offers.

Features

• Various Adaptors including BNC, SMA, TNC
• Impedance Rating: 50 and 75 ohms
• Straight, Tee and Right Angle options

Application

• Monitors
• TVs
• Test Equipment
• Laboratory Hardware

6-3

D-Sub Connectors

D-Sub ports are used for connecting external devices to a computer. They are an older method of connection, but some modern computers still contain them. These ports are gradually being replaced by more efficient connection technology, such as USB.

Features

• Plug and Receptacle Types
• 9 to 62 contact options
• Straight and Right angle connections available
• Large range of gold plated contact options

Application

• Video Connectors
• Medical Monitoring Devices
• Test Equipment
• Audio Recording Equipment
• Printers and Monitors

RS PRO

Buying Guide

Thermocouple & Probe Accessories

Click a range to view online

7-1

Thermocouple & Probe Accessories

These thermocouple plugs and accessories are ideal for connecting your thermocouple probe or wire terminals to extension or compensating cables.

Features

• Adapters, Connectors, Plugs & Sockets for many thermocouple types
• Probes and Accessories
• Compression Glands

Application

• To be used in any application where thermocouples are installed, extended or replaced
• Measure a wide range of temperatures

Associated products

7-1

Thermocouples

A thermocouple is a device which measures temperature. It is made up of two wires of different metals that, when joined together, create an electrical junction. When the temperature changes at this junction it creates a voltage which can be interpreted to read the temperature. This is also known as the Seebeck effect.

Features

• Type J, K and T
• Temperature Range: -148°F to 2282°F
• Multiple connection types including Miniature Plug/Socket and wire
• Variety of wire colors combinations

Application

• Thermostats
• Hospital thermometers
• Vehicle diagnostics
• Boiler/heating sensors
• Oven safety features
• Food thermometers
• Industrial probes/sensor
• Ideal tools for temperature measurement
• Robust yet affordable solutions

7-2

Resistance Temperature Detectors (RTD)

Resistance temperature detectors are high-quality temperature sensors used for accurate temperature measurement. They are ideal in industries where precise measurement and control, often at extreme temperatures, is crucial.

Features

• Temperature Range: -328°F to 1202°F
• Termination Types: Cable, Cable Gland, Connection Head, Lead Wire, Solder

Application

Our latest addition of PT100 sensors includes a fantastic hygienic range which is ideally suited for dairy, brewery and pharmaceutical applications.

7-3

Thermocouple Wire

Thermocouple extension wire is a hardwearing type of wire used for connecting a thermocouple probe to a readout instrument.

Features

• Variety of types including J, JX, K, and KX
• Lengths ranging from 3 to 650 ft
• Temperature Range: -103°F to 2192°F

Wire Types
• Flat
• Solid Wire
• Twisted

Application

• Extension Wire: extend distance between a thermocouple probe and the instrument reading the signal (only - cannot be used in a thermocouple's sensing point)
• Grade Wire: make the sensing point of the thermocouple

RS PRO

Buying Guide

Panel Mount Indicators

Click a range to view online

8-1

Panel Mount Indicators

LED indicators will emit a high level of brightness, this is boosted by the fact they are long lasting by their low energy consumption qualities. All models are highly reliable and excellent quality

Features

• All IP67 which is NEMA 4X equivalent
• Available in Flush, Prominent and Recessed styles
• Current rating from 3mA to 40mA

Application

• Control Panels that require basic HMI
• Motor Control Centers
• Process display panels
• Industrial Vehicles

Associated products

8-1

Electrical Enclosures

Enclosures are present in almost every industry and can store all manor of items, such as medical equipment or electronics. These boxes are rated at IP66 and provide an excellent degree of protection, indoor or outdoor.

Features

• Desktop, Wall and Panel Mounting options
• NEMA 4X and 6P Rating
• Variety of sizes and options
• Multiple color options including gray and black

Application

• Building electrical and telecommunication rooms
• Manufacturing plants
• Utilities
• Industrial Applications

8-2

Hook-Up Wire

Hook up wire can be used for internal wiring of electrical and electronic equipment. Hook-up wire is in the family of lead wire that may be used for low-voltage, low current applications and is a single insulated conductor.

Features

• 3 AWG to 28 AWG wire sizes in the range
• Many color options
• Up to 6kV rated wire available
• Applications from 2A to 136A
• UL approved

Application

• Control Panels
• Automotive build
• Meters
• Wiring Computers and appliances
• Electronic Equipment

8-3

Power Supply (AC-DC Power Supplies)

The power supplies provide parallel operation, over voltage protection and overcurrent protection. There is an LED inductor for power status, PFC options and the power supply is certified to UL.

Features

• DIN Rail Mounted
• Interchangeable Plug-in Power Supplies
• Encapsulated Power Supplier
• Desktop Power Supplies
• RS PRO Switch Mode Power Supplies

Application

• Process control
• Factory automation
• Traffic and transportation system
• Other industrial applications

RS PRO

Buying Guide

Standard Batteries

Click a range to view online

9-1

Standard Batteries

Our range of RS PRO batteries, also called primary batteries, will support your daily essential tasks with long lasting energy cells.Group Photo of AA, AAA, C, D, 9V Alkaline

Features

• Chargeable and Non Chargeable options
• All Standard cells AA, AAA, C, D, 9V included
• Large selection of coin cell options
• Various Chemical types available in the range
• Lead Acid batteries up to a capacity of 150Ah

Application

• Office Equipment
• Mobile electrical devices including Meters, Radios
• Back up power for medical and other critical electrical equipment
• Electric Vehicles and carts

Associated products

9-1

Multimeters

A digital multimeter is a device that provides measurements of circuit parameters such as voltage (volts), currents (amps) and resistance (ohms).

Features

• LCD
• LED
• Milliohm Meter
• Voltage Range: 300-1000 VAC/DC
• Current Rating: 1 kA to 600 A

Application

Measuring AC Current, AC Voltage, Capacitance, Conductance, Continuity, Current, DC Current, DC Voltage, Diode or Diode Test, Duty Cycle, Frequency, Harmonics or Total Harmonic Distortion, and much more.

9-2

Tool Kits

RS PRO has a range of high-quality complete tool kits, tool boxes and tool sets at an affordable price to suit all your requirements.

Features

• Several sizes of complete Electrical & Mechanical Tool Kits
• Ranges of Screwdriver, cutter and Plier sets available
• VDE 1000V kits
• Kits come in tool bags, tool boxes and Wallets
• All tools have a 3 year warranty

Application

• maintenance of industrial sites
• Panel Shops
• Machine Building
• Every Engineering and Industrial projects needs reliable tools

9-3

Tapes

RS PRO has a complete ranges of industrial quality tapes for all application

Features

• Electrical Tapes
• Foam Insulation Tapes
• Masking Tapes
• PTFE Tape
• Double sided tapes
• Hazard and Barrier Tapes

Application

• Insulating electrical wiring and terminals
• Zoning or masking areas in the workplace
• Sealing joints
• To crate an adhesive surface
• Insulation requirements

RS PRO

Buying Guide

Cable Ties

Click a range to view online

10-1

Cable Ties

RS PRO Nylon Non-Releasable Cable Ties. Their primary purpose is to hold cables together or in a specific location. Nylon Non-Releasable Cable Ties are made from nylon, easy to use and are an essential item for any toolbox. Steel options also available

Features

• Several colors available in a range of sizes
• Self-extinguishing to rating UL94V-2
• UL approved nylon 6.6
• 18Ib to 300lb tensile strength range
• Steel options are available for more robust applications
• Indoor and outdoor use

Application

• Grouping Cables and wire together :-
• Control Panels
• Tele Communications
• Audio/Video installations
• Wiring within building

Associated products

10-1

Multiconductor Cables

These flexible cables offer various degrees of protection against electrical interference and resistance to caustic substances and oils.

Features

• AWG Range: 9-30
• Length ranging from 16 feet to 1900 feet
• UL Approved

Application

• General purpose wiring circuits
• Control circuits
• Internal appliance wiring
• Switchgear wiring

10-2

Hook-Up Wire

Hook up wire can be used for internal wiring of electrical and electronic equipment. Hook-up wire is in the family of lead wire that may be used for low-voltage, low current applications and is a single insulated conductor.

Features

• 3 AWG to 28 AWG wire sizes in the range
• Many color options
• Up to 6kV rated wire available
• Applications from 2A to 136A
• UL approved

Application

• Control Panels
• Automotive build
• Meters
• Wiring Computers and appliances
• Electronic Equipment

10-3

Heat Shrink Tubing

Heat shrink tubing is a type of extruded plastic tube that reduces in size when heated to a pre-determined shrink ratio to fit a specific application.

Features

• All standard Colors
• Shrink diameter up to 2.6”
• Available in adhesive and non adhesive lined
• 1:1, 2:1 and 3:1 shrink ratio
• Flame retardant

Application

• Electrical insulation
• Strain relief
• Wire bundling
• Environmental and mechanical protection
• Identification

RS PRO

Buying Guide

Hook-Up Wire

Click a range to view online

11-1

Hook-Up Wire

Hook up wire can be used for internal wiring of electrical and electronic equipment. Hook-up wire is in the family of lead wire that may be used for low-voltage, low current applications and is a single insulated conductor.

Features

• 3 AWG to 28 AWG wire sizes in the range
• Many color options
• Up to 6kV rated wire available
• Applications from 2A to 136A

Application

• Control Panels and Meters
• Automotive build
• Wiring Computers and appliances
• Electronic Equipment

Associated products

11-1

Crimp Ferrules

An electrical wiring ferrule is a soft metal tube that is crimped onto the end of a stranded wire to improve the wire's connection characteristics. Most ferrules are made of copper, which is usually plated with tin. The ferrule is sized for a specific gauge of wire, both in terms of its diameter and its length

Features

• Variety of colors available
• 4 AWG to 26 AWG sizes in the range
• Kits available with an assortment of sizes

Application

• Wiring Connections on Control Panels
• Any device that requires a good electrical wire connection

11-2

Heat Shrink Tubing

Heat shrink tubing is a type of extruded plastic tube that reduces in size when heated to a pre-determined shrink ratio to fit a specific application.

Features

• All standard Colors
• Shrink diameter up to 2.6”
• Available in adhesive and non adhesive lined
• 1:1, 2:1 and 3:1 shrink ratio
• Flame retardant

Application

• Electrical insulation
• Strain relief
• Wire bundling
• Environmental and mechanical protection
• Identification

11-3

Cable Ties

RS PRO Nylon Non-Releasable Cable Ties. Their primary purpose is to hold cables together or in a specific location. Nylon Non-Releasable Cable Ties are made from nylon, easy to use and are an essential item for any toolbox. Steel options also available

Features

• Several colors available in a range of sizes
• Self-extinguishing to rating UL94V-2
• UL approved nylon 6.6
• 18Ib to 300lb tensile strength range
• Steel options are available for more robust applications
• Indoor and outdoor use

Application

• Grouping Cables and wire together :-
• Control Panels
• Tele Communications
• Audio/Video installations
• Wiring within building

RS PRO

Buying Guide

Liquid Tight Strain Relief

Click a range to view online

12-1

Liquid Tight Strain Relief

Liquid tight strain relief connectors are suitable for use in wet or dry locations. The connectors provide a strain relief termination for flexible cord and cable with a positive liquid tight seal. Use locknuts and sealing washers to complete a liquid tight installation on a sheet metal box or enclosure.

Features

• PG and Metric sizes available
• Cable Diameter up to 1.5"
• Nylon or Nickel Plated Brass options
• Several colors available in Nylon
• All RS PRO Strain Relief come with a locking nut

Application

• Control Panels for external wiring connection
• Machine and device electrical installations
• Industrial Vehicles
• Power distribution

Associated products

12-1

Multiconductor Cables

These flexible cables offer various degrees of protection against electrical interference and resistance to caustic substances and oils.

Features

• AWG Range: 9-30
• Length ranging from 16 feet to 1900 feet
• UL Approved

Application

• General purpose wiring circuits
• Control circuits
• Internal appliance wiring
• Switchgear wiring

12-2

Hook-Up Wire

Hook up wire can be used for internal wiring of electrical and electronic equipment. Hook-up wire is in the family of lead wire that may be used for low-voltage, low current applications and is a single insulated conductor.

Features

• 3 AWG to 28 AWG wire sizes in the range
• Many color options
• Up to 6kV rated wire available
• Applications from 2A to 136A
• UL approved

Application

• Control Panels
• Automotive build
• Meters
• Wiring Computers and appliances
• Electronic Equipment

12-3

Heat Shrink Tubing

Heat shrink tubing is a type of extruded plastic tube that reduces in size when heated to a pre-determined shrink ratio to fit a specific application.

Features

• All standard Colors
• Shrink diameter up to 2.6”
• Available in adhesive and non adhesive lined
• 1:1, 2:1 and 3:1 shrink ratio
• Flame retardant

Application

• Electrical insulation
• Strain relief
• Wire bundling
• Environmental and mechanical protection
• Identification

RS PRO

Buying Guide

Network (Cat 5/6) Cables

Click a range to view online

13-1

Network (Cat 5/6) Cables

A range of Cat 5/6 cables perfect for network connections within the home, office spaces or any area requiring a reliable and high performing internet connection. All models are highly reliable and excellent quality.

Features

• Available in a variety of colors
• Lengths from 1.5Ft to 100Ft
• UTP and FTP shielding versions available
• Large range of Low Smoke Zero Halogen options

Application

• Office Computer Hardware
• Data Centers
• PLCs
• Industrial Networking

Associated products

13-1

Telecom Connectors

Network and telecom connectors include the popular RJ–the acronym stands for Registered Jack–connectors, which are used to transmit data and to provide telephony services all over the world. The connectors include designs that are intended for very rugged use, and designs that are intended for everyday use in environments such as offices.

Features

• Range of adaptors and sockets for RJ45 and RJ11 connections
• Panel, PCB and press fit installation options
• 2-26 contact versions available
• Gold plated options included in the range

Application

• Office networking
• Electronic circuit boards
• Industrial Networking including PLC's
• PC hardware, including printers, docking stations
• Medical hardware

13-2

RF Connectors

A coaxial RF connector (radio frequency connector) is an electrical connector designed to work at radio frequencies in the multi-megahertz range. RF connectors are typically used with coaxial cables and are designed to maintain the shielding that the coaxial design offers.

Features

• Various Adaptors including BNC, SMA, TNC
• Impedance Rating: 50 and 75 ohms
• Straight, Tee and Right Angle options

Application

• Monitors
• TVs
• Test Equipment
• Laboratory Hardware

13-3

Cable Ties

RS PRO Nylon Non-Releasable Cable Ties. Their primary purpose is to hold cables together or in a specific location. Nylon Non-Releasable Cable Ties are made from nylon, easy to use and are an essential item for any toolbox. Steel options also available

Features

• Several colors available in a range of sizes
• Self-extinguishing to rating UL94V-2
• UL approved nylon 6.6
• 18Ib to 300lb tensile strength range
• Steel options are available for more robust applications
• Indoor and outdoor use

Application

• Grouping Cables and wire together :-
• Control Panels
• Tele Communications
• Audio/Video installations
• Wiring within building

RS PRO

Buying Guide

Thermocouple Wire

Click a range to view online

14-1

Thermocouple Wire

Thermocouple extension wire is a hardwearing type of wire used for connecting a thermocouple probe to a readout instrument.

Features

• Variety of types including J, JX, K, and KX
• Lengths ranging from 3 to 650 ft
• Temperature Range: -103°F to 2192°F

Wire Types
• Flat
• Solid Wire
• Twisted

Application

• Extension Wire: extend distance between a thermocouple probe and the instrument reading the signal (only - cannot be used in a thermocouple's sensing point)
• Grade Wire: make the sensing point of the thermocouple

Associated products

14-1

Thermocouples

A thermocouple is a device which measures temperature. It is made up of two wires of different metals that, when joined together, create an electrical junction. When the temperature changes at this junction it creates a voltage which can be interpreted to read the temperature. This is also known as the Seebeck effect.

Features

• Type J, K and T
• Temperature Range: -148°F to 2282°F
• Multiple connection types including Miniature Plug/Socket and wire
• Variety of wire colors combinations

Application

• Thermostats
• Hospital thermometers
• Vehicle diagnostics
• Boiler/heating sensors
• Oven safety features
• Food thermometers
• Industrial probes/sensor
• Ideal tools for temperature measurement
• Robust yet affordable solutions

14-2

Thermocouple & Probe Accessories

These thermocouple plugs and accessories are ideal for connecting your thermocouple probe or wire terminals to extension or compensating cables.

Features

• Adapters, Connectors, Plugs & Sockets for many thermocouple types
• Probes and Accessories
• Compression Glands

Application

• To be used in any application where thermocouples are installed, extended or replaced
• Measure a wide range of temperatures
• Used in many digital thermometersTemperature sensor accessories are components that contribute to the operation of a temperature sensor.

14-3

Resistance Temperature Detectors (RTD)

Resistance temperature detectors are high-quality temperature sensors used for accurate temperature measurement. They are ideal in industries where precise measurement and control, often at extreme temperatures, is crucial.

Features

• Temperature Range: -328°F to 1202°F
• Termination Types: Cable, Cable Gland, Connection Head, Lead Wire, Solder

Application

Our latest addition of PT100 sensors includes a fantastic hygienic range which is ideally suited for dairy, brewery and pharmaceutical applications.

RS PRO

Buying Guide

RF Connectors

Click a range to view online

15-1

RF Connectors

A coaxial RF connector (radio frequency connector) is designed to work at radio frequencies in the multi-megahertz range an to maintain the shielding that the coaxial design offers.

Features

• Various Adaptors including BNC, SMA, TNC
• Impedance Rating: 50 and 75 ohms
• Straight, Tee and Right Angle options

Application

• Monitors
• TVs
• Test Equipment
• Laboratory Hardware

Associated products

15-1

Coaxial Cables

Coaxial cable is a type of copper cable specially built with a metal shield and other components engineered to block signal interference. Consists of a tube of electrically conducting material surrounding a central conductor held in place by insulators and that is used to transmit telephone, television, and Internet signals

Features

• 14 different RG cable types
• Available in 100ft to 1600ft lengths
• 18 AWG to 28 AWG sizes in the range
• Several Jacket covers in the range
• Silver Plated Braid options available

Application

• Distribution of Satellite and Cable TV signals
• Telephone lines
• Data Centers
• Computer Networking

15-2

D-Sub Connectors

D-Sub ports are used for connecting external devices to a computer. They are an older method of connection, but some modern computers still contain them. These ports are gradually being replaced by more efficient connection technology, such as USB.

Features

• Plug and Receptacle Types
• 9 to 62 contact options
• Straight and Right angle connections available
• Large range of gold plated contact options

Application

• Video Connectors
• Medical Monitoring Devices
• Test Equipment
• Audio Recording Equipment
• Printers and Monitors

15-3

Network (Cat 5/6) Cables

A range of Cat 5/6 cables perfect for network connections within the home, office spaces or any area requiring a reliable and high performing internet connection. Ethernet cables come in various shapes and sizes, but quality is something which should never be overlooked, as a reliable connection can make a huge difference to company performance. All models are highly reliable and excellent quality.

Features

• Available in a variety of colors
• Lengths from 1.5Ft to 100Ft
• UTP and FTP shielding versions available
• Large range of Low Smoke Zero Halogen options

Application

• Office Computer Hardware
• Data Centers
• PLCs
• Industrial Networking

RS PRO

Buying Guide

Scissors

Click a range to view online

16-1

Scissors

Scissors assortment includes types for cutting paper, fabric and various materials. Scissors consist of two blades fastened in the middle to allow an open and closed action upon application. Operated by a thumb and fingers inserted through the handle rings. Scissor Types: Electricians, General Purpose and Clamp Scissors

Features

• Caron and Stainless Steel blade options
• Variety of options from Electricians, General Purpose and Clamp Scissors

Application

• Kitchen applications
• Card and paper work
• Cloth work
• Other light and medium duty applications

Associated products

16-1

Multi-Use Tools

Multi-tools feature multiple pieces of equipment in one simple, compact tool. Each piece usually folds away into the tool for easy portability too. Multi-tools are a key item in most tool boxes and tool belts as they often save having to carry lots of tools at once.

Features

• Stainless Multitool with a variety of useful tools
• Cabinet Keys in both Zinc Alloy and Aluminum

Application

• Variety of tools to fit maintenance needs

16-2

Wire Strippers

Wire strippers are a hand-held tool designed to remove insulation or outer sheath from electrical wires. There are various types available from stripping the cable to cutting copper and conduit. Each is made with high-quality components to produce the best wire stripper tool for your application.

Features

• Multiple stripper options to work with a variety of wire and cable

Application

• Electrical
• Mechanics
• Electrical cable installations
• Telecommunications

16-3

Tool Kits

RS PRO has a range of high-quality complete tool kits, tool boxes and tool sets at an affordable price to suit all your requirements.

Features

• Several sizes of complete Electrical & Mechanical Tool Kits
• Ranges of Screwdriver, cutter and Plier sets available
• VDE 1000V kits
• Kits come in tool bags, tool boxes and Wallets
• All tools have a 3 year warranty

Application

• maintenance of industrial sites
• Panel Shops
• Machine Building
• Every Engineering and Industrial projects needs reliable tools

RS PRO

Buying Guide

Power Supply (AC-DC Power Supplies)

Click a range to view online

17-1

Power Supply (AC-DC Power Supplies)

The power supplies provide parallel operation, over voltage protection and overcurrent protection. There is an LED inductor for power status, PFC options and the power supply is certified to UL.

Features

• DIN Rail Mounted
• Interchangeable Plug-in Power Supplies
• Encapsulated Power Supplier
• Desktop Power Supplies
• RS PRO Switch Mode Power Supplies

Application

• Process control
• Factory automation
• Traffic and transportation system
• Other industrial applications

Associated products

17-1

Non-Fusible Disconnect Switches

High quality range of non-fusible disconnect switches for use with low voltage switchgear such as power distribution, load isolation and motor start/stop for Panel/Enclosure applications.

Features

• All Switch ratings at AC22
• 2 to 8 pole options in the range
• Application from 20A to 125A
• IP65 protection
• UL and CSA Approved

Application

• Panel/Enclosure power/load isolation
• Motors stop/start

17-2

Hook-Up Wire

Hook up wire can be used for internal wiring of electrical and electronic equipment. Hook-up wire is in the family of lead wire that may be used for low-voltage, low current applications and is a single insulated conductor.

Features

• 3 AWG to 28 AWG wire sizes in the range
• Many color options
• Up to 6kV rated wire available
• Applications from 2A to 136A
• UL approved

Application

• Control Panels
• Automotive build
• Meters
• Wiring Computers and appliances
• Electronic Equipment

17-3

Fuses

Fuses are safety devices used in an electric plug or circuit, made of a wire components inserted in a non-combustible housing. Their function is to prevent the damages induced by an overflow of electrical current, by overheating and melting the wire inserted in the housing whenever there is a fault, consequently interrupting the electrical flow.

Features

Type
• Blade
• Cartridge
• Surface Mount
• Wire Ended

Class
• Class F
• Class FF
• Class gG
• Class Q1
• Class T

Application

• Automotive
• Electricians – Domestic and industrial
• Lab technicians
• Plant and Services maintenance

RS PRO

Buying Guide

Time Delay Relays

Click a range to view online

18-1

Time Delay Relays

Timer Relays are a type of Control Relay with a time delay built in.

Features

• Both DIN Rail and Panel Mount Options
• Multi-Functional timer options
• Range includes all standard contact configurations
• Maximum voltage options 415V

Application

• Lighting circuits
• Motor start control
• Sensitive equipment
• Safety control
• Conveyor belt sequence delay

Associated products

18-1

Power Supply (AC-DC Power Supplies)

The power supplies provide parallel operation, over voltage protection and overcurrent protection. There is an LED inductor for power status, PFC options and the power supply is certified to UL.

Features

• DIN Rail Mounted
• Interchangeable Plug-in Power Supplies
• Encapsulated Power Supplier
• Desktop Power Supplies
• RS PRO Switch Mode Power Supplies

Application

• Process control
• Factory automation
• Traffic and transportation system
• Other industrial applications

18-2

Hook-Up Wire

Hook up wire can be used for internal wiring of electrical and electronic equipment. Hook-up wire is in the family of lead wire that may be used for low-voltage, low current applications and is a single insulated conductor.

Features

• 3 AWG to 28 AWG wire sizes in the range
• Many color options
• Up to 6kV rated wire available
• Applications from 2A to 136A
• UL approved

Application

• Control Panels
• Automotive build
• Meters
• Wiring Computers and appliances
• Electronic Equipment

18-3

Non-Fusible Disconnect Switches

High quality range of non-fusible disconnect switches for use with low voltage switchgear such as power distribution, load isolation and motor start/stop for Panel/Enclosure applications.

Features

• All Switch ratings at AC22
• 2 to 8 pole options in the range
• Application from 20A to 125A
• IP65 protection
• UL and CSA Approved

Application

• Panel/Enclosure power/load isolation
• Motors stop/start

RS PRO

Buying Guide

Transformers

Click a range to view online

19-1

Transformers

Transformers are used in a variety of environments to converts one electrical circuit from one electrical circuit to another.

Features

• Power rating up to 1500VA
• Thru-hole, Screw and lead wire termination options
• Many mounting options available including both DIN Rail and panel

Application

• Autotransformer
• Chassis Mounting
• Current Transformers
• DIN Rail & Panel Mount
• PCB
• Wall Mount Transformers

Associated products

19-1

Power Supply (AC-DC Power Supplies)

The power supplies provide parallel operation, over voltage protection and overcurrent protection. There is an LED inductor for power status, PFC options and the power supply is certified to UL.

Features

• DIN Rail Mounted
• Interchangeable Plug-in Power Supplies
• Encapsulated Power Supplier
• Desktop Power Supplies
• RS PRO Switch Mode Power Supplies

Application

• Process control
• Factory automation
• Traffic and transportation system
• Other industrial applications

19-2

Non-Fusible Disconnect Switches

High quality range of non-fusible disconnect switches for use with low voltage switchgear such as power distribution, load isolation and motor start/stop for Panel/Enclosure applications.

Features

• All Switch ratings at AC22
• 2 to 8 pole options in the range
• Application from 20A to 125A
• IP65 protection
• UL and CSA Approved

Application

• Panel/Enclosure power/load isolation
• Motors stop/start

19-3

Hook-Up Wire

Hook up wire can be used for internal wiring of electrical and electronic equipment. Hook-up wire is in the family of lead wire that may be used for low-voltage, low current applications and is a single insulated conductor.

Features

• 3 AWG to 28 AWG wire sizes in the range
• Many color options
• Up to 6kV rated wire available
• Applications from 2A to 136A
• UL approved

Application

• Control Panels
• Automotive build
• Meters
• Wiring Computers and appliances
• Electronic Equipment

RS PRO

Buying Guide

Printed Marker Books & Tags

Click a range to view online

20-1

Printed Marker Books & Tags

Our selection of paperwork labelling, binding and laminating tools makes it easy to protect and organize all your important documents - ideal for daily long-term use and safekeeping around the home, school or office.

Features

• Temperature Measurement
• Die cut Alpha Letters, Numbers & Symbols
• ESD Labeling
• Equipment Tags

Associated products

20-1

Thermocouples

A thermocouple is a device which measures temperature. It is made up of two wires of different metals that, when joined together, create an electrical junction. When the temperature changes at this junction it creates a voltage which can be interpreted to read the temperature. This is also known as the Seebeck effect.

Features

• Type J, K and T
• Temperature Range: -148°F to 2282°F
• Multiple connection types including Miniature Plug/Socket and wire
• Variety of wire colors combinations

Application

• Thermostats
• Hospital thermometers
• Vehicle diagnostics
• Boiler/heating sensors
• Oven safety features
• Food thermometers
• Industrial probes/sensor
• Ideal tools for temperature measurement
• Robust yet affordable solutions

20-2

Thermocouple Wire

Thermocouple extension wire is a hardwearing type of wire used for connecting a thermocouple probe to a readout instrument.

Features

• Variety of types including J, JX, K, and KX
• Lengths ranging from 3 to 650 ft
• Temperature Range: -103°F to 2192°F

Wire Types
• Flat
• Solid Wire
• Twisted

Application

• Extension Wire: extend distance between a thermocouple probe and the instrument reading the signal (only - cannot be used in a thermocouple's sensing point)
• Grade Wire: make the sensing point of the thermocouple

20-3

Multimeters

A digital multimeter is a device that provides measurements of circuit parameters such as voltage (volts), currents (amps) and resistance (ohms).

Features

• LCD
• LED
• Milliohm Meter
• Voltage Range: 300-1000 VAC/DC
• Current Rating: 1 kA to 600 A

Application

Measuring AC Current, AC Voltage, Capacitance, Conductance, Continuity, Current, DC Current, DC Voltage, Diode or Diode Test, Duty Cycle, Frequency, Harmonics or Total Harmonic Distortion, and much more.

RS PRO

Buying Guide

Resistance Temperature Detectors (RTD)

Click a range to view online

21-1

Resistance Temperature Detectors (RTD)

Resistance temperature detectors are high-quality temperature sensors used for accurate temperature measurement. They are ideal in industries where precise measurement and control, often at extreme temperatures, is crucial.

Features

• Temperature Range: -328°F to 1202°F
• Termination Types: Cable, Cable Gland, Connection Head, Lead Wire, Solder

Application

Our latest addition of PT100 sensors includes a fantastic hygienic range which is ideally suited for dairy, brewery and pharmaceutical applications.

Associated products

21-1

Thermocouples

A thermocouple is a device which measures temperature. It is made up of two wires of different metals that, when joined together, create an electrical junction. When the temperature changes at this junction it creates a voltage which can be interpreted to read the temperature. This is also known as the Seebeck effect.

Features

• Type J, K and T
• Temperature Range: -148°F to 2282°F
• Multiple connection types including Miniature Plug/Socket and wire
• Variety of wire colors combinations

Application

• Thermostats
• Hospital thermometers
• Vehicle diagnostics
• Boiler/heating sensors
• Oven safety features
• Food thermometers
• Industrial probes/sensor
• Ideal tools for temperature measurement
• Robust yet affordable solutions

21-2

Thermocouple & Probe Accessories

These thermocouple plugs and accessories are ideal for connecting your thermocouple probe or wire terminals to extension or compensating cables.

Features

• Adapters, Connectors, Plugs & Sockets for many thermocouple types
• Probes and Accessories
• Compression Glands

Application

• To be used in any application where thermocouples are installed, extended or replaced
• Measure a wide range of temperatures
• Used in many digital thermometersTemperature sensor accessories are components that contribute to the operation of a temperature sensor.

21-3

Thermocouple Wire

Thermocouple extension wire is a hardwearing type of wire used for connecting a thermocouple probe to a readout instrument. Thermocouples are sensors that measure temperature across a wide range of applications in most industrial environments. Thermocouple extension wire is made from a lower grade of wire than that used in thermocouple probes, so it is more economical when used at length. It's typically made with color-coded (usually PVC) insulation applied to each wire leg. The negative lead is usually insulated in red and the positive lead is the color of the thermocouple. For added durability and flexibility, a metal overbraid is applied to the insulated wire. For PVC wire this is a tinned copper overbraid, and for PFA it's stainless steel. This added layer protects the wire against abrasion.

Features

• Variety of types including J, JX, K, and KX
• Lengths ranging from 3 to 650 ft
• Temperature Range: -103°F to 2192°F

Wire Types
• Flat
• Solid Wire
• Twisted

Application

• Extension Wire: extend distance between a thermocouple probe and the instrument reading the signal (only - cannot be used in a thermocouple's sensing point)
• Grade Wire: make the sensing point of the thermocouple

RS PRO

Buying Guide

Crimpers

Click a range to view online

22-1

Crimpers

A crimping tool is used to join or connect two pieces of material together by compression, squeezing one or both of the materials to form a bond or seal.

Features

• Multiple crimper options to work with a variety of crimp terminals wire and cable
• Precision eccentric adjustment for consistent performance and ability to calibrate

Application

• Connect components together quickly

Associated products

22-1

Crimp Terminals

From crimp ring terminals to bootlace ferrules and butt splices, we stock a wide range of electrical terminals and splices for use with varying wire types and sizes.

Features

• Multiple Terminal sizes to work with a variety of wire and cable
• Wide array of termiation options including ring and tab
• Insulated and uninsulated options avaiable in multiple colors

Application

• Control Panels
• Automotive build
• Telecommunications
• Prototyping
• Electronics and Engineering
• Test & Measurement

22-2

Crimp Ferrules

An electrical wiring ferrule is a soft metal tube that is crimped onto the end of a stranded wire to improve the wire's connection characteristics. Most ferrules are made of copper, which is usually plated with tin. The ferrule is sized for a specific gauge of wire, both in terms of its diameter and its length

Features

• Variety of colors available
• 4 AWG to 26 AWG sizes in the range
• Kits available with an assortment of sizes

Application

• Wiring Connections on Control Panels
• Any device that requires a good electrical wire connection

22-3

Hook-Up Wire

Hook up wire can be used for internal wiring of electrical and electronic equipment. Hook-up wire is in the family of lead wire that may be used for low-voltage, low current applications and is a single insulated conductor.

Features

• 3 AWG to 28 AWG wire sizes in the range
• Many color options
• Up to 6kV rated wire available
• Applications from 2A to 136A
• UL approved

Application

• Control Panels
• Automotive build
• Meters
• Wiring Computers and appliances
• Electronic Equipment

RS PRO

Buying Guide

Multiconductor Cables

Click a range to view online

23-1

Multiconductor Cables

These flexible cables offer various degrees of protection against electrical interference and resistance to caustic substances and oils.

Features

• AWG Range: 9-30
• Length ranging from 16 feet to 1900 feet
• UL Approved

Application

• General purpose wiring circuits
• Control circuits
• Internal appliance wiring
• Switchgear wiring

Associated products

23-1

Liquid Tight Strain Relief

Liquid tight strain relief connectors are suitable for use in wet or dry locations. The connectors provide a strain relief termination for flexible cord and cable with a positive liquid tight seal. Use locknuts and sealing washers to complete a liquid tight installation on a sheet metal box or enclosure.

Features

• PG and Metric sizes available
• Cable Diameter up to 1.5"
• Nylon or Nickel Plated Brass options
• Several colors available in Nylon
• All RS PRO Strain Relief come with a locking nut

Application

• Control Panels for external wiring connection
• Machine and device electrical installations
• Industrial Vehicles
• Power distribution

23-2

Power Supply (AC-DC Power Supplies)

The power supplies provide parallel operation, over voltage protection and overcurrent protection. There is an LED inductor for power status, PFC options and the power supply is certified to UL.

Features

• DIN Rail Mounted
• Interchangeable Plug-in Power Supplies
• Encapsulated Power Supplier
• Desktop Power Supplies
• RS PRO Switch Mode Power Supplies

Application

• Process control
• Factory automation
• Traffic and transportation system
• Other industrial applications

23-3

Wire Strippers

Wire strippers are a hand-held tool designed to remove insulation or outer sheath from electrical wires. There are various types available from stripping the cable to cutting copper and conduit. Each is made with high-quality components to produce the best wire stripper tool for your application.

Features

• Multiple stripper options to work with a variety of wire and cable

Application

• Electrical
• Mechanics
• Electrical cable installations
• Telecommunications

RS PRO

Buying Guide

DIN Valve/43650 Connectors

Click a range to view online

24-1

DIN Valve/43650 Connectors

DIN 43650 solenoid connectors are durable valve connectors used across a wide range of industrial applications. They're not affected by voltage surges or electro-magnetic interference.

Features

• Variety of types from connector, socket and DIN Valve
• Connector Size PG9 and PG11
• Current Rating from 4A- 10A
• Voltage Range from 24V-250V

Application

• Machine building
• Machine tooling
• Equipment Manufacturing
• Power Facilitation
• Signal transmission in magnetic valves

Associated products

24-1

Multiconductor Cables

These flexible cables offer various degrees of protection against electrical interference and resistance to caustic substances and oils.

Features

• AWG Range: 9-30
• Length ranging from 16 feet to 1900 feet
• UL Approved

Application

• General purpose wiring circuits
• Control circuits
• Internal appliance wiring
• Switchgear wiring

24-2

Hook-Up Wire

Hook up wire can be used for internal wiring of electrical and electronic equipment. Hook-up wire is in the family of lead wire that may be used for low-voltage, low current applications and is a single insulated conductor.

Features

• 3 AWG to 28 AWG wire sizes in the range
• Many color options
• Up to 6kV rated wire available
• Applications from 2A to 136A
• UL approved

Application

• Control Panels
• Automotive build
• Meters
• Wiring Computers and appliances
• Electronic Equipment

24-3

Wire Strippers

Wire strippers are a hand-held tool designed to remove insulation or outer sheath from electrical wires. There are various types available from stripping the cable to cutting copper and conduit. Each is made with high-quality components to produce the best wire stripper tool for your application.

Features

• Multiple stripper options to work with a variety of wire and cable

Application

• Electrical
• Mechanics
• Electrical cable installations
• Telecommunications

RS PRO

Buying Guide

Fuses

Click a range to view online

25-1

Fuses

Fuses are safety devices used in an electric plug or circuit, made of a wire components inserted in a non-combustible housing. Their function is to prevent the damages induced by an overflow of electrical current, by overheating and melting the wire inserted in the housing whenever there is a fault, consequently interrupting the electrical flow.

Features

Type
• Blade
• Cartridge
• Surface Mount
• Wire Ended

Class
• Class F
• Class FF
• Class gG
• Class Q1
• Class T

Application

• Automotive
• Electricians – Domestic and industrial
• Lab technicians
• Plant and Services maintenance

Associated products

25-1

Non-Fusible Disconnect Switches

High quality range of non-fusible disconnect switches for use with low voltage switchgear such as power distribution, load isolation and motor start/stop for Panel/Enclosure applications.

Features

• All Switch ratings at AC22
• 2 to 8 pole options in the range
• Application from 20A to 125A
• IP65 protection
• UL and CSA Approved

Application

• Panel/Enclosure power/load isolation
• Motors stop/start

25-2

Power Supply (AC-DC Power Supplies)

The power supplies provide parallel operation, over voltage protection and overcurrent protection. There is an LED inductor for power status, PFC options and the power supply is certified to UL.

Features

• DIN Rail Mounted
• Interchangeable Plug-in Power Supplies
• Encapsulated Power Supplier
• Desktop Power Supplies
• RS PRO Switch Mode Power Supplies

Application

• Process control
• Factory automation
• Traffic and transportation system
• Other industrial applications

25-3

Time Delay Relays

Timer Relays are a type of Control Relay with a time delay built in.

Features

• Both DIN Rail and Panel Mount Options
• Multi-Functional timer options
• Range includes all standard contact configurations
• Maximum voltage options 415V

Application

• Lighting circuits
• Motor start control
• Sensitive equipment
• Safety control
• Conveyor belt sequence delay

RS PRO

Buying Guide

Lamps (Light Bulbs)

Click a range to view online

26-1

Lamps (Light Bulbs)

Our range offers solutions for electricians in commercial and domestic work spaces. Should you require anything from a common ceiling light or light switch, to infrared lamp-were confident our range can support you.

Features

• Variety of lamp types from incandescent to LED
• Multiple color options
• Life range up to 125K hours
• Luminous Intensity from 11 to 2100 mcd

Application

• Commercial
• Domestic
• Repair
• Energy Saving Lights

Associated products

26-1

Multiconductor Cables

These flexible cables offer various degrees of protection against electrical interference and resistance to caustic substances and oils.

Features

• AWG Range: 9-30
• Length ranging from 16 feet to 1900 feet
• UL Approved

Application

• General purpose wiring circuits
• Control circuits
• Internal appliance wiring
• Switchgear wiring

26-2

Multimeters

A digital multimeter is a device that provides measurements of circuit parameters such as voltage (volts), currents (amps) and resistance (ohms).

Features

• LCD
• LED
• Milliohm Meter
• Voltage Range: 300-1000 VAC/DC
• Current Rating: 1 kA to 600 A

Application

Measuring AC Current, AC Voltage, Capacitance, Conductance, Continuity, Current, DC Current, DC Voltage, Diode or Diode Test, Duty Cycle, Frequency, Harmonics or Total Harmonic Distortion, and much more.

26-3

Power Supply (AC-DC Power Supplies)

The power supplies provide parallel operation, over voltage protection and overcurrent protection. There is an LED inductor for power status, PFC options and the power supply is certified to UL.

Features

• DIN Rail Mounted
• Interchangeable Plug-in Power Supplies
• Encapsulated Power Supplier
• Desktop Power Supplies
• RS PRO Switch Mode Power Supplies

Application

• Process control
• Factory automation
• Traffic and transportation system
• Other industrial applications

RS PRO

Buying Guide

Magnetic Door Locks

Click a range to view online

27-1

Magnetic Door Locks

Access control door magnets Door magnets ensure that doors close automatically and are securely closed. They are designed to suit a variety of domestic and commercial applications and offer solutions where a high security level is required.

Features

• Variety of magnetic plates
• Force from 53N to 3600N
• IP20, IP54 and IP67
• Supply Voltage from 12 VDC to 24VDC

Application

• School
• Hospitals
• Nursing Homes
• Secure Industrial spaces

Associated products

27-1

Multiconductor Cables

These flexible cables offer various degrees of protection against electrical interference and resistance to caustic substances and oils.

Features

• AWG Range: 9-30
• Length ranging from 16 feet to 1900 feet
• UL Approved

Application

• General purpose wiring circuits
• Control circuits
• Internal appliance wiring
• Switchgear wiring

27-2

Tool Kits

RS PRO has a range of high-quality complete tool kits, tool boxes and tool sets at an affordable price to suit all your requirements.

Features

• Several sizes of complete Electrical & Mechanical Tool Kits
• Ranges of Screwdriver, cutter and Plier sets available
• VDE 1000V kits
• Kits come in tool bags, tool boxes and Wallets
• All tools have a 3 year warranty

Application

• maintenance of industrial sites
• Panel Shops
• Machine Building
• Every Engineering and Industrial projects needs reliable tools

27-3

Multimeters

A digital multimeter is a device that provides measurements of circuit parameters such as voltage (volts), currents (amps) and resistance (ohms).

Features

• LCD
• LED
• Milliohm Meter
• Voltage Range: 300-1000 VAC/DC
• Current Rating: 1 kA to 600 A

Application

Measuring AC Current, AC Voltage, Capacitance, Conductance, Continuity, Current, DC Current, DC Voltage, Diode or Diode Test, Duty Cycle, Frequency, Harmonics or Total Harmonic Distortion, and much more.

RS PRO

Buying Guide

Testers

Click a range to view online

28-1

Testers

RS PRO's range of over 25 types of testers will meet your specific requirements with a quality tester at a budget-friendly price. These testers are a good solution for any testing challenges.

Features

• Over 25 types of testers available including Earth, Ground, Resistance and Insulation

Application

• Routine Measuring
• Installed Device Testing
• Testing and Tracing Wire

Associated products

28-1

Multimeters

A digital multimeter is a device that provides measurements of circuit parameters such as voltage (volts), currents (amps) and resistance (ohms).

Features

• LCD
• LED
• Milliohm Meter
• Voltage Range: 300-1000 VAC/DC
• Current Rating: 1 kA to 600 A

Application

Measuring AC Current, AC Voltage, Capacitance, Conductance, Continuity, Current, DC Current, DC Voltage, Diode or Diode Test, Duty Cycle, Frequency, Harmonics or Total Harmonic Distortion, and much more.

28-2

Tool Kits

RS PRO has a range of high-quality complete tool kits, tool boxes and tool sets at an affordable price to suit all your requirements.

Features

• Several sizes of complete Electrical & Mechanical Tool Kits
• Ranges of Screwdriver, cutter and Plier sets available
• VDE 1000V kits
• Kits come in tool bags, tool boxes and Wallets
• All tools have a 3 year warranty

Application

• maintenance of industrial sites
• Panel Shops
• Machine Building
• Every Engineering and Industrial projects needs reliable tools

28-3

Tapes

RS PRO has a complete ranges of industrial quality tapes for all application

Features

• Electrical Tapes
• Foam Insulation Tapes
• Masking Tapes
• PTFE Tape
• Double sided tapes
• Hazard and Barrier Tapes

Application

• Insulating electrical wiring and terminals
• Zoning or masking areas in the workplace
• Sealing joints
• To crate an adhesive surface
• Insulation requirements

RS PRO

Buying Guide

Standoff

Click a range to view online

29-1

Standoff

From RS PRO a range of robust, high-quality hexagonal shaped standoffs with a metric internal thread or threaded stud on either end. These versatile standoffs are designed to securely mount your PCB as well as elevating it from other components such as the inside of a computer chassis or another PCB.

Features

• Male/Female or Female/Female options
• M3 to M6 thread types
• Brass, Nylon or Steel versions

Application

• Improving airflow space around components on a PCB board
• Separate a PCB by a set distance from other components

Associated products

29-1

Clips

From the trusted RS PRO brand, the range of spring clips are highly versatile. With a solid steel construction, the clip is easily mounted by a screw hole.

Features

• Nylon Coated or bare steel
• Designed to be inserted and taken out at will
• Variety of sizes

Application

• Tool retaining clip
• Fix pipes or hose by simply clicking them into place.
• Custom Cable Management

29-2

DIN Rails

DIN rail is a metal rail of a standard type widely used for mounting circuit breakers and industrial control equipment inside equipment racks. These products are typically made from cold rolled carbon steel sheet with a zinc-plated or chromated bright surface finish.

Features

• Steel or zinc plated steel options
• 7.5mm (0.3") or 15mm (0.6") heights
• Comes in 6 ft length

Application

Mounting DIN-rail mounted devices including circuit breakers and industrial control equipment inside racks/enclosures

29-3

Tapes

RS PRO has a complete ranges of industrial quality tapes for all application

Features

• Electrical Tapes
• Foam Insulation Tapes
• Masking Tapes
• PTFE Tape
• Double sided tapes
• Hazard and Barrier Tapes

Application

• Insulating electrical wiring and terminals
• Zoning or masking areas in the workplace
• Sealing joints
• To crate an adhesive surface
• Insulation requirements

RS PRO

Buying Guide

Clips

Click a range to view online

30-1

Clips

From the trusted RS PRO brand, the range of spring clips are highly versatile. With a solid steel construction, the clip is easily mounted by a screw hole.

Features

• Nylon Coated or bare steel
• Designed to be inserted and taken out at will
• Variety of sizes

Application

• Tool retaining clip
• Fix pipes or hose by simply clicking them into place.
• Custom Cable Management

Associated products

30-1

Standoff

From RS PRO a range of robust, high-quality hexagonal shaped standoffs with a metric internal thread or threaded stud on either end. These versatile standoffs are designed to securely mount your PCB as well as elevating it from other components such as the inside of a computer chassis or another PCB.

Features

• Male/Female or Female/Female options
• M3 to M6 thread types
• Brass, Nylon or Steel versions

Application

• Improving airflow space around components on a PCB board
• Separate a PCB by a set distance from other components

30-2

DIN Rails

DIN rail is a metal rail of a standard type widely used for mounting circuit breakers and industrial control equipment inside equipment racks. These products are typically made from cold rolled carbon steel sheet with a zinc-plated or chromated bright surface finish.

Features

• Steel or zinc plated steel options
• 7.5mm (0.3") or 15mm (0.6") heights
• Comes in 6 ft length

Application

Mounting DIN-rail mounted devices including circuit breakers and industrial control equipment inside racks/enclosures

30-3

Tapes

RS PRO has a complete ranges of industrial quality tapes for all application

Features

• Electrical Tapes
• Foam Insulation Tapes
• Masking Tapes
• PTFE Tape
• Double sided tapes
• Hazard and Barrier Tapes

Application

• Insulating electrical wiring and terminals
• Zoning or masking areas in the workplace
• Sealing joints
• To crate an adhesive surface
• Insulation requirements

RS PRO

Buying Guide

Tool Kits

Click a range to view online

31-1

Tool Kits

RS PRO has a range of high-quality complete tool kits, tool boxes and tool sets at an affordable price to suit all your requirements.

Features

• Several sizes of complete Electrical & Mechanical Tool Kits
• Ranges of Screwdriver, cutter and Plier sets available
• VDE 1000V kits
• Kits come in tool bags, tool boxes and Wallets
• All tools have a 3 year warranty

Application

• maintenance of industrial sites
• Panel Shops
• Machine Building
• Every Engineering and Industrial projects needs reliable tools

Associated products

31-1

Multimeters

A digital multimeter is a device that provides measurements of circuit parameters such as voltage (volts), currents (amps) and resistance (ohms).

Features

• LCD
• LED
• Milliohm Meter
• Voltage Range: 300-1000 VAC/DC
• Current Rating: 1 kA to 600 A

Application

Measuring AC Current, AC Voltage, Capacitance, Conductance, Continuity, Current, DC Current, DC Voltage, Diode or Diode Test, Duty Cycle, Frequency, Harmonics or Total Harmonic Distortion, and much more.

31-2

Standard Batteries

Our range of RS PRO batteries, also called primary batteries, will support your daily essential tasks with long lasting energy cells.Group Photo of AA, AAA, C, D, 9V Alkaline

Features

• Chargeable and Non Chargeable options
• All Standard cells AA, AAA, C, D, 9V included
• Large selection of coin cell options
• Various Chemical types available in the range
• Lead Acid batteries up to a capacity of 150Ah

Application

• Office Equipment
• Mobile electrical devices including Meters, Radios
• Back up power for medical and other critical electrical equipment
• Electric Vehicles and carts

31-3

Scissors

Scissors assortment includes types for cutting paper, fabric and various materials. Scissors consist of two blades fastened in the middle to allow an open and closed action upon application. Operated by a thumb and fingers inserted through the handle rings. Scissor Types: Electricians, General Purpose and Clamp Scissors

Features

• Caron and Stainless Steel blade options
• Variety of options from Electricians, General Purpose and Clamp Scissors

Application

• Kitchen applications
• Card and paper work
• Cloth work
• Other light and medium duty applications

RS PRO

Buying Guide

Multimeters

Click a range to view online

32-1

Multimeters

A digital multimeter is a device that provides measurements of circuit parameters such as voltage (volts), currents (amps) and resistance (ohms).

Features

• LCD
• LED
• Milliohm Meter
• Voltage Range: 300-1000 VAC/DC
• Current Rating: 1 kA to 600 A

Application

Measuring AC Current, AC Voltage, Capacitance, Conductance, Continuity, Current, DC Current, DC Voltage, Diode or Diode Test, Duty Cycle, Frequency, Harmonics or Total Harmonic Distortion, and much more.

Associated products

32-1

Standard Batteries

Our range of RS PRO batteries, also called primary batteries, will support your daily essential tasks with long lasting energy cells.Group Photo of AA, AAA, C, D, 9V Alkaline

Features

• Chargeable and Non Chargeable options
• All Standard cells AA, AAA, C, D, 9V included
• Large selection of coin cell options
• Various Chemical types available in the range
• Lead Acid batteries up to a capacity of 150Ah

Application

• Office Equipment
• Mobile electrical devices including Meters, Radios
• Back up power for medical and other critical electrical equipment
• Electric Vehicles and carts

32-2

Tool Kits

RS PRO has a range of high-quality complete tool kits, tool boxes and tool sets at an affordable price to suit all your requirements.

Features

• Several sizes of complete Electrical & Mechanical Tool Kits
• Ranges of Screwdriver, cutter and Plier sets available
• VDE 1000V kits
• Kits come in tool bags, tool boxes and Wallets
• All tools have a 3 year warranty

Application

• maintenance of industrial sites
• Panel Shops
• Machine Building
• Every Engineering and Industrial projects needs reliable tools

32-3

Testers

RS PRO's range of over 25 types of testers will meet your specific requirements with a quality tester at a budget-friendly price. These testers are a good solution for any testing challenges.

Features

• Over 25 types of testers available including Earth, Ground, Resistance and Insulation

Application

• Routine Measuring
• Installed Device Testing
• Testing and Tracing Wire

RS PRO

Buying Guide

Crimp Ferrules

Click a range to view online

33-1

Crimp Ferrules

An electrical wiring ferrule is a soft metal tube that is crimped onto the end of a stranded wire to improve the wire's connection characteristics. Most ferrules are made of copper, which is usually plated with tin. The ferrule is sized for a specific gauge of wire, both in terms of its diameter and its length

Features

• Variety of colors available
• 4 AWG to 26 AWG sizes in the range
• Kits available with an assortment of sizes

Application

• Wiring Connections on Control Panels
• Any device that requires a good electrical wire connection

Associated products

33-1

Crimpers

A crimping tool allows you to quickly seal the connector to the end of the cable by compressing the connector against the cable. What you are left with is called a crimp.

Features

• Multiple options to work with a variety of terminals, wire and cable
• Precision eccentric adjustment for consistent performance and ability to calibrate

Application

• Control Panels
• Automotive build
• Telecommunications
• Prototyping
• Electronics and Engineering
• Test & Measurement

33-2

Hook-Up Wire

Hook up wire can be used for internal wiring of electrical and electronic equipment. Hook-up wire is in the family of lead wire that may be used for low-voltage, low current applications and is a single insulated conductor.

Features

• 3 AWG to 28 AWG wire sizes in the range
• Many color options
• Up to 6kV rated wire available
• Applications from 2A to 136A
• UL approved

Application

• Control Panels
• Automotive build
• Meters
• Wiring Computers and appliances
• Electronic Equipment

33-3

Heat Shrink Tubing

Heat shrink tubing is a type of extruded plastic tube that reduces in size when heated to a pre-determined shrink ratio to fit a specific application.

Features

• All standard Colors
• Shrink diameter up to 2.6”
• Available in adhesive and non adhesive lined
• 1:1, 2:1 and 3:1 shrink ratio
• Flame retardant

Application

• Electrical insulation
• Strain relief
• Wire bundling
• Environmental and mechanical protection
• Identification

RS PRO

Buying Guide

Chemical Accessories

Click a range to view online

34-1

Chemical Accessories

Range of chemical dispensers, Nozzles, bottles and guns from RS PRO. Range also includes Humidity Indicating Desiccators

Features

• Glue and Grease Guns
• Cleaner Oil Solvent bottles
• Mixer nozzles
• Humidity Desiccator

Application

• Storing Chemicals
• Containers for any type of industrial chemical
• Maintenance workshops
• Lubricating and greasing machinery

Associated products

34-1

Tapes

RS PRO has a complete ranges of industrial quality tapes for all application

Features

• Electrical Tapes
• Foam Insulation Tapes
• Masking Tapes
• PTFE Tape
• Double sided tapes
• Hazard and Barrier Tapes

Application

• Insulating electrical wiring and terminals
• Zoning or masking areas in the workplace
• Sealing joints
• To crate an adhesive surface
• Insulation requirements

34-2

Standard Batteries

Our range of RS PRO batteries, also called primary batteries, will support your daily essential tasks with long lasting energy cells.Group Photo of AA, AAA, C, D, 9V Alkaline

Features

• Chargeable and Non Chargeable options
• All Standard cells AA, AAA, C, D, 9V included
• Large selection of coin cell options
• Various Chemical types available in the range
• Lead Acid batteries up to a capacity of 150Ah

Application

• Office Equipment
• Mobile electrical devices including Meters, Radios
• Back up power for medical and other critical electrical equipment
• Electric Vehicles and carts

34-3

Multi-Use Tools

Multi-tools feature multiple pieces of equipment in one simple, compact tool. Each piece usually folds away into the tool for easy portability too. Multi-tools are a key item in most tool boxes and tool belts as they often save having to carry lots of tools at once.

Features

• Stainless Multitool with a variety of useful tools
• Cabinet Keys in both Zinc Alloy and Aluminum

Application

• Variety of tools to fit maintenance needs

RS PRO

Buying Guide

Multi-Use Tools

Click a range to view online

35-1

Multi-Use Tools

Multi-tools feature multiple pieces of equipment in one simple, compact tool. Each piece usually folds away into the tool for easy portability too. Multi-tools are a key item in most tool boxes and tool belts as they often save having to carry lots of tools at once.

Features

• Stainless Multitool with a variety of useful tools
• Cabinet Keys in both Zinc Alloy and Aluminum

Application

• Variety of tools to fit maintenance needs

Associated products

35-1

Tool Kits

RS PRO has a range of high-quality complete tool kits, tool boxes and tool sets at an affordable price to suit all your requirements.

Features

• Several sizes of complete Electrical & Mechanical Tool Kits
• Ranges of Screwdriver, cutter and Plier sets available
• VDE 1000V kits
• Kits come in tool bags, tool boxes and Wallets
• All tools have a 3 year warranty

Application

• maintenance of industrial sites
• Panel Shops
• Machine Building
• Every Engineering and Industrial projects needs reliable tools

35-2

Multimeters

A digital multimeter is a device that provides measurements of circuit parameters such as voltage (volts), currents (amps) and resistance (ohms).

Features

• LCD
• LED
• Milliohm Meter
• Voltage Range: 300-1000 VAC/DC
• Current Rating: 1 kA to 600 A

Application

Measuring AC Current, AC Voltage, Capacitance, Conductance, Continuity, Current, DC Current, DC Voltage, Diode or Diode Test, Duty Cycle, Frequency, Harmonics or Total Harmonic Distortion, and much more.

35-3

Standard Batteries

Our range of RS PRO batteries, also called primary batteries, will support your daily essential tasks with long lasting energy cells.Group Photo of AA, AAA, C, D, 9V Alkaline

Features

• Chargeable and Non Chargeable options
• All Standard cells AA, AAA, C, D, 9V included
• Large selection of coin cell options
• Various Chemical types available in the range
• Lead Acid batteries up to a capacity of 150Ah

Application

• Office Equipment
• Mobile electrical devices including Meters, Radios
• Back up power for medical and other critical electrical equipment
• Electric Vehicles and carts

RS PRO

Buying Guide

Industrial Pin & Sleeve Power Connectors

Click a range to view online

36-1

Industrial Pin & Sleeve Power Connectors

The RS PRO Range of industrial power connectors provide solutions for many environments. Often equipped with built in dust covers, the connectors are suitable for use in high particle environments, such as powering wood working machines.

Features

• Wide range of voltage options
• Multiple color options
• Number of poles from 2 up to 4
• Current Rating up to 125 A
• IP Rating 44, 66 and 67

Application

• Connectors for power tools and machinery
• Industrial Environments
• High Particle Spaces
• Outdoor Applications
• Construction Sites

Associated products

36-1

Telecom Connectors

Network and telecom connectors include the popular RJ–the acronym stands for Registered Jack–connectors, which are used to transmit data and to provide telephony services all over the world. The connectors include designs that are intended for very rugged use, and designs that are intended for everyday use in environments such as offices.

Features

• Range of adaptors and sockets for RJ45 and RJ11 connections
• Panel, PCB and press fit installation options
• 2-26 contact versions available
• Gold plated options included in the range

Application

• Office networking
• Electronic circuit boards
• Industrial Networking including PLC's
• PC hardware, including printers, docking stations
• Medical hardware

36-2

Liquid Tight Strain Relief

Liquid tight strain relief connectors are suitable for use in wet or dry locations. The connectors provide a strain relief termination for flexible cord and cable with a positive liquid tight seal. Use locknuts and sealing washers to complete a liquid tight installation on a sheet metal box or enclosure.

Features

• PG and Metric sizes available
• Cable Diameter up to 1.5"
• Nylon or Nickel Plated Brass options
• Several colors available in Nylon
• All RS PRO Strain Relief come with a locking nut

Application

• Control Panels for external wiring connection
• Machine and device electrical installations
• Industrial Vehicles
• Power distribution

36-3

Power Supply (AC-DC Power Supplies)

The power supplies provide parallel operation, over voltage protection and overcurrent protection. There is an LED inductor for power status, PFC options and the power supply is certified to UL.

Features

• DIN Rail Mounted
• Interchangeable Plug-in Power Supplies
• Encapsulated Power Supplier
• Desktop Power Supplies
• RS PRO Switch Mode Power Supplies

Application

• Process control
• Factory automation
• Traffic and transportation system
• Other industrial applications

RS PRO

Buying Guide

Coaxial/RF Cables

Click a range to view online

37-1

Coaxial/RF Cables

Coaxial cables are electrical cables with an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield.
Coax cables are durable, easy to install and are designed to carry signals over long distances.

Features

• Variety of connector types and angle combinations
• Cable type options available for different applications
• Shielding and insulation options available
• Cable lengths up to 20 feet

Application

• Laboratory
• Test and measurement
• Communications
• Base stations
• GPS
• LAN
• Antennas

Associated products

37-1

Coaxial/RF Adapters

An RF Coaxial adapter is a single piece component allowing the connection of two different pieces of equipment that cannot be joined directly.

Features

• Variety of contact plating
• 50 and 75 Ohm
• Variations of jack, plug and BNC

Application

• Laboratory
• Test and measurement
• Communications
• Base stations
• GPS
• LAN
• Antennas

37-2

Audio & Video Connectors

Audio and video connectors are used in conjunction with cabling connectors are key components for presenting audio and video through cabling so that the receiver can get audio and/or video signals.

Features

• Range of Sizes
• Multiple mounting options
• Types include cable connectors and adapters

Application

• Headphone/audio jacks
• Professional audio and video equipment
• Transmitting digital audio and video signal

37-3

Network (Cat 5/6) Cables

A range of Cat 5/6 cables perfect for network connections within the home, office spaces or any area requiring a reliable and high performing internet connection. Ethernet cables come in various shapes and sizes, but quality is something which should never be overlooked, as a reliable connection can make a huge difference to company performance. All models are highly reliable and excellent quality.

Features

• Available in a variety of colors
• Lengths from 1.5Ft to 100Ft
• UTP and FTP shielding versions available
• Large range of Low Smoke Zero Halogen options

Application

• Office Computer Hardware
• Data Centers
• PLCs
• Industrial Networking

RS PRO

Buying Guide

Heat Shrink Tubing

Click a range to view online

38-1

Heat Shrink Tubing

Heat shrink tubing is a type of extruded plastic tube that reduces in size when heated to a pre-determined shrink ratio to fit a specific application.

Features

• All standard Colors
• Shrink diameter up to 2.6”
• Available in adhesive and non adhesive lined
• 1:1, 2:1 and 3:1 shrink ratio
• Flame retardant

Application

• Electrical insulation
• Strain relief
• Wire bundling
• Environmental and mechanical protection
• Identification

Associated products

38-1

Multiconductor Cables

These flexible cables offer various degrees of protection against electrical interference and resistance to caustic substances and oils.

Features

• AWG Range: 9-30
• Length ranging from 16 feet to 1900 feet
• UL Approved

Application

• General purpose wiring circuits
• Control circuits
• Internal appliance wiring
• Switchgear wiring

38-2

Hook-Up Wire

Hook up wire can be used for internal wiring of electrical and electronic equipment. Hook-up wire is in the family of lead wire that may be used for low-voltage, low current applications and is a single insulated conductor.

Features

• 3 AWG to 28 AWG wire sizes in the range
• Many color options
• Up to 6kV rated wire available
• Applications from 2A to 136A
• UL approved

Application

• Control Panels
• Automotive build
• Meters
• Wiring Computers and appliances
• Electronic Equipment

38-3

Cable Ties

RS PRO Nylon Non-Releasable Cable Ties. Their primary purpose is to hold cables together or in a specific location. Nylon Non-Releasable Cable Ties are made from nylon, easy to use and are an essential item for any toolbox. Steel options also available

Features

• Several colors available in a range of sizes
• Self-extinguishing to rating UL94V-2
• UL approved nylon 6.6
• 18Ib to 300lb tensile strength range
• Steel options are available for more robust applications
• Indoor and outdoor use

Application

• Grouping Cables and wire together :-
• Control Panels
• Tele Communications
• Audio/Video installations
• Wiring within building

RS PRO

Buying Guide

DIN Rails

Click a range to view online

39-1

DIN Rails

DIN rail is a metal rail of a standard type widely used for mounting circuit breakers and industrial control equipment inside equipment racks. These products are typically made from cold rolled carbon steel sheet with a zinc-plated or chromated bright surface finish.

Features

• Steel or zinc plated steel options
• 7.5mm (0.3") or 15mm (0.6") heights
• Comes in 6 ft length

Application

Mounting DIN-rail mounted devices including circuit breakers and industrial control equipment inside racks/enclosures

Associated products

39-1

Electrical Enclosures

Enclosures are present in almost every industry and can store all manor of items, such as medical equipment or electronics. These boxes are rated at IP66 and provide an excellent degree of protection, indoor or outdoor.

Features

• Desktop, Wall and Panel Mounting options
• NEMA 4X and 6P Rating
• Variety of sizes and options
• Multiple color options including gray and black

Application

• Building electrical and telecommunication rooms
• Manufacturing plants
• Utilities
• Industrial Applications

39-2

Non-Fusible Disconnect Switches

High quality range of non-fusible disconnect switches for use with low voltage switchgear such as power distribution, load isolation and motor start/stop for Panel/Enclosure applications.

Features

• All Switch ratings at AC22
• 2 to 8 pole options in the range
• Application from 20A to 125A
• IP65 protection
• UL and CSA Approved

Application

• Panel/Enclosure power/load isolation
• Motors stop/start

39-3

Liquid Tight Strain Relief

Liquid tight strain relief connectors are suitable for use in wet or dry locations. The connectors provide a strain relief termination for flexible cord and cable with a positive liquid tight seal. Use locknuts and sealing washers to complete a liquid tight installation on a sheet metal box or enclosure.

Features

• PG and Metric sizes available
• Cable Diameter up to 1.5"
• Nylon or Nickel Plated Brass options
• Several colors available in Nylon
• All RS PRO Strain Relief come with a locking nut

Application

• Control Panels for external wiring connection
• Machine and device electrical installations
• Industrial Vehicles
• Power distribution

RS PRO

Buying Guide

Power, Line

Click a range to view online

40-1

Power, Line

Power cable assemblies are defined as any power cable which has had a connector installed prior to sale. There are versions which may have one connector and an unterminated end. Depending on the application, there are various types to suit the needs.

Features

• Variety of lengths
• Multiple connector types

Application

• Provide power to a device/product

Associated products

40-1

Power Supply (AC-DC Power Supplies)

The power supplies provide parallel operation, over voltage protection and overcurrent protection. There is an LED inductor for power status, PFC options and the power supply is certified to UL.

Features

• DIN Rail Mounted
• Interchangeable Plug-in Power Supplies
• Encapsulated Power Supplier
• Desktop Power Supplies
• RS PRO Switch Mode Power Supplies

Application

• Process control
• Factory automation
• Traffic and transportation system
• Other industrial applications

40-2

Panel Mount Indicators

LED indicators will emit a high level of brightness, this is boosted by the fact they are long lasting by their low energy consumption qualities. All models are highly reliable and excellent quality

Features

• All IP67 which is NEMA 4X equivalent
• Available in Flush, Prominent and Recessed styles
• Current rating from 3mA to 40mA

Application

• Control Panels that require basic HMI
• Motor Control Centers
• Process display panels
• Industrial Vehicles

40-3

Fuses

Fuses are safety devices used in an electric plug or circuit, made of a wire components inserted in a non-combustible housing. Their function is to prevent the damages induced by an overflow of electrical current, by overheating and melting the wire inserted in the housing whenever there is a fault, consequently interrupting the electrical flow.

Features

Type
• Blade
• Cartridge
• Surface Mount
• Wire Ended

Class
• Class F
• Class FF
• Class gG
• Class Q1
• Class T

Application

• Automotive
• Electricians – Domestic and industrial
• Lab technicians
• Plant and Services maintenance

RS PRO

Buying Guide

Tapes

Click a range to view online

41-1

Tapes

RS PRO has a complete ranges of industrial quality tapes for all application

Features

• Electrical Tapes
• Foam Insulation Tapes
• Masking Tapes
• PTFE Tape
• Double sided tapes
• Hazard and Barrier Tapes

Application

• Insulating electrical wiring and terminals
• Zoning or masking areas in the workplace
• Sealing joints
• To crate an adhesive surface
• Insulation requirements

Associated products

41-1

Standard Batteries

Our range of RS PRO batteries, also called primary batteries, will support your daily essential tasks with long lasting energy cells.Group Photo of AA, AAA, C, D, 9V Alkaline

Features

• Chargeable and Non Chargeable options
• All Standard cells AA, AAA, C, D, 9V included
• Large selection of coin cell options
• Various Chemical types available in the range
• Lead Acid batteries up to a capacity of 150Ah

Application

• Office Equipment
• Mobile electrical devices including Meters, Radios
• Back up power for medical and other critical electrical equipment
• Electric Vehicles and carts

41-2

Tool Kits

RS PRO has a range of high-quality complete tool kits, tool boxes and tool sets at an affordable price to suit all your requirements.

Features

• Several sizes of complete Electrical & Mechanical Tool Kits
• Ranges of Screwdriver, cutter and Plier sets available
• VDE 1000V kits
• Kits come in tool bags, tool boxes and Wallets
• All tools have a 3 year warranty

Application

• maintenance of industrial sites
• Panel Shops
• Machine Building
• Every Engineering and Industrial projects needs reliable tools

41-3

Multimeters

A digital multimeter is a device that provides measurements of circuit parameters such as voltage (volts), currents (amps) and resistance (ohms).

Features

• LCD
• LED
• Milliohm Meter
• Voltage Range: 300-1000 VAC/DC
• Current Rating: 1 kA to 600 A

Application

Measuring AC Current, AC Voltage, Capacitance, Conductance, Continuity, Current, DC Current, DC Voltage, Diode or Diode Test, Duty Cycle, Frequency, Harmonics or Total Harmonic Distortion, and much more.

RS PRO

Buying Guide

Foot Switches

Click a range to view online

42-1

Foot Switches

Foot switches are a rugged electrical switch that is operated by foot pressure to change contacts within an electrical circuit. Often used on large machinery where hand operated switches are a safety concern.

Features

• Both Momentary and Maintain operations
• Multiple termination options available
• IP ratings to suit a variety of environments
• With and without covers

Application

• Machine Assemble
• Factory Floor

Associated products

42-1

Multiconductor Cables

These flexible cables offer various degrees of protection against electrical interference and resistance to caustic substances and oils.

Features

• AWG Range: 9-30
• Length ranging from 16 feet to 1900 feet
• UL Approved

Application

• General purpose wiring circuits
• Control circuits
• Internal appliance wiring
• Switchgear wiring

42-2

Power Supply (AC-DC Power Supplies)

The power supplies provide parallel operation, over voltage protection and overcurrent protection. There is an LED inductor for power status, PFC options and the power supply is certified to UL.

Features

• DIN Rail Mounted
• Interchangeable Plug-in Power Supplies
• Encapsulated Power Supplier
• Desktop Power Supplies
• RS PRO Switch Mode Power Supplies

Application

• Process control
• Factory automation
• Traffic and transportation system
• Other industrial applications

42-3

Fuses

Fuses are safety devices used in an electric plug or circuit, made of a wire components inserted in a non-combustible housing. Their function is to prevent the damages induced by an overflow of electrical current, by overheating and melting the wire inserted in the housing whenever there is a fault, consequently interrupting the electrical flow.

Features

Type
• Blade
• Cartridge
• Surface Mount
• Wire Ended

Class
• Class F
• Class FF
• Class gG
• Class Q1
• Class T

Application

• Automotive
• Electricians – Domestic and industrial
• Lab technicians
• Plant and Services maintenance

RS PRO

Buying Guide

Fitting Accessories

Click a range to view online

43-1

Fitting Accessories

Pneumatic fittings are predominantly made from three different types of material; plastic, stainless steel and polymer.

Features

• Quick connect options
• Variety of materials used to meet different specifications

Application

• Food and Beverage
• Production Lines

Associated products

43-1

Multiconductor Cables

These flexible cables offer various degrees of protection against electrical interference and resistance to caustic substances and oils.

Features

• AWG Range: 9-30
• Length ranging from 16 feet to 1900 feet
• UL Approved

Application

• General purpose wiring circuits
• Control circuits
• Internal appliance wiring
• Switchgear wiring

43-2

Power Supply (AC-DC Power Supplies)

The power supplies provide parallel operation, over voltage protection and overcurrent protection. There is an LED inductor for power status, PFC options and the power supply is certified to UL.

Features

• DIN Rail Mounted
• Interchangeable Plug-in Power Supplies
• Encapsulated Power Supplier
• Desktop Power Supplies
• RS PRO Switch Mode Power Supplies

Application

• Process control
• Factory automation
• Traffic and transportation system
• Other industrial applications

43-3

Crimp Ferrules

An electrical wiring ferrule is a soft metal tube that is crimped onto the end of a stranded wire to improve the wire's connection characteristics. Most ferrules are made of copper, which is usually plated with tin. The ferrule is sized for a specific gauge of wire, both in terms of its diameter and its length

Features

• Variety of colors available
• 4 AWG to 26 AWG sizes in the range
• Kits available with an assortment of sizes

Application

• Wiring Connections on Control Panels
• Any device that requires a good electrical wire connection

RS PRO

Buying Guide

Electronic Enclosure

Click a range to view online

44-1

Electronic Enclosure

An enclosure is a structure used for storing and protecting components which might otherwise be affected by dirt, dust and moisture, therefore getting damaged. Because of their function, enclosures are generally sturdy to offer more safety to the tools or system they enclose, and they can include a locking system.

Features

• Variety of materials to suit different applications from industrial to electrical
• Various sizes to fit small to large applications
• Both Rack and wall mounting options

Application

• Aluminum: Industrial Application (extreme environment)
• Multi-purpose flanged enclosures (communication devices)
• Junction Boxes

Associated products

44-1

Liquid Tight Strain Relief

Liquid tight strain relief connectors are suitable for use in wet or dry locations. The connectors provide a strain relief termination for flexible cord and cable with a positive liquid tight seal. Use locknuts and sealing washers to complete a liquid tight installation on a sheet metal box or enclosure.

Features

• PG and Metric sizes available
• Cable Diameter up to 1.5"
• Nylon or Nickel Plated Brass options
• Several colors available in Nylon
• All RS PRO Strain Relief come with a locking nut

Application

• Control Panels for external wiring connection
• Machine and device electrical installations
• Industrial Vehicles
• Power distribution

44-2

Network (Cat 5/6) Cables

A range of Cat 5/6 cables perfect for network connections within the home, office spaces or any area requiring a reliable and high performing internet connection. Ethernet cables come in various shapes and sizes, but quality is something which should never be overlooked, as a reliable connection can make a huge difference to company performance. All models are highly reliable and excellent quality.

Features

• Available in a variety of colors
• Lengths from 1.5Ft to 100Ft
• UTP and FTP shielding versions available
• Large range of Low Smoke Zero Halogen options

Application

• Office Computer Hardware
• Data Centers
• PLCs
• Industrial Networking

44-3

Audio & Video Connectors

Audio and video connectors are used in conjunction with cabling connectors are key components for presenting audio and video through cabling so that the receiver can get audio and/or video signals.

Features

• Range of Sizes
• Multiple mounting options
• Types include cable connectors and adapters

Application

• Headphone/audio jacks
• Professional audio and video equipment
• Transmitting digital audio and video signal

RS PRO

Buying Guide

Sleeves & Tubing

Click a range to view online

45-1

Sleeves & Tubing

Sleeves & Tubing are used to bundle cables together or insulate a single cable and are ideal for avoiding tangles, hiding unsightly cables and making an area safe. RS PRO offers a wide range of sleeving which can be durable and versatile.

Features

• Braided Sleeving and spiral tubing
• Diameter up to 10mm
• Large assortment of materials
• Lengths up to 164"

Application

• Marine & offshore
• Automotive
• Pharmaceutical & medical
• Food and beverage
• Manufacturing

Associated products

45-1

Multiconductor Cables

These flexible cables offer various degrees of protection against electrical interference and resistance to caustic substances and oils.

Features

• AWG Range: 9-30
• Length ranging from 16 feet to 1900 feet
• UL Approved

Application

• General purpose wiring circuits
• Control circuits
• Internal appliance wiring
• Switchgear wiring

45-2

Hook-Up Wire

Hook up wire can be used for internal wiring of electrical and electronic equipment. Hook-up wire is in the family of lead wire that may be used for low-voltage, low current applications and is a single insulated conductor.

Features

• 3 AWG to 28 AWG wire sizes in the range
• Many color options
• Up to 6kV rated wire available
• Applications from 2A to 136A
• UL approved

Application

• Control Panels
• Automotive build
• Meters
• Wiring Computers and appliances
• Electronic Equipment

45-3

Heat Shrink Tubing

Heat shrink tubing is a type of extruded plastic tube that reduces in size when heated to a pre-determined shrink ratio to fit a specific application.

Features

• All standard Colors
• Shrink diameter up to 2.6”
• Available in adhesive and non adhesive lined
• 1:1, 2:1 and 3:1 shrink ratio
• Flame retardant

Application

• Electrical insulation
• Strain relief
• Wire bundling
• Environmental and mechanical protection
• Identification

RS PRO

Buying Guide

Cable Tie Mounts

Click a range to view online

46-1

Cable Tie Mounts

Cable tie mounts or bases act as a fixing element for a cable tie to any surface. They assist with mounting wires and cables to walls, structures or panels. They are designed to hold cable ties that are a specific width and are selected by the maximum and minimum width it can accept.

Features

• Mounting types include both screw and self-adhesive
• Variety of sizes
• Black, natural and white color options
• Multiple material options including Nylon66 and Polypropylene

Application

• Control Panels
• Telecommunications
• Audio/Video installations
• Wiring within building

Associated products

46-1

Cable Ties

RS PRO Nylon Non-Releasable Cable Ties. Their primary purpose is to hold cables together or in a specific location. Nylon Non-Releasable Cable Ties are made from nylon, easy to use and are an essential item for any toolbox. Steel options also available

Features

• Several colors available in a range of sizes
• Self-extinguishing to rating UL94V-2
• UL approved nylon 6.6
• 18Ib to 300lb tensile strength range
• Steel options are available for more robust applications
• Indoor and outdoor use

Application

• Grouping Cables and wire together :-
• Control Panels
• Tele Communications
• Audio/Video installations
• Wiring within building

46-2

Multiconductor Cables

These flexible cables offer various degrees of protection against electrical interference and resistance to caustic substances and oils.

Features

• AWG Range: 9-30
• Length ranging from 16 feet to 1900 feet
• UL Approved

Application

• General purpose wiring circuits
• Control circuits
• Internal appliance wiring
• Switchgear wiring

46-3

Hook-Up Wire

Hook up wire can be used for internal wiring of electrical and electronic equipment. Hook-up wire is in the family of lead wire that may be used for low-voltage, low current applications and is a single insulated conductor.

Features

• 3 AWG to 28 AWG wire sizes in the range
• Many color options
• Up to 6kV rated wire available
• Applications from 2A to 136A
• UL approved

Application

• Control Panels
• Automotive build
• Meters
• Wiring Computers and appliances
• Electronic Equipment

RS PRO

Buying Guide

Valves

Click a range to view online

48-1

Valves

To control and isolate fluid flows, we supply a broad selection of valves and taps. A valve is an essential mechanical device similar to switches, is responsible for modulating the flux of fluid passing through a pipe. The word tap most commonly refers to valves and fittings used in water control supplied by sinks and bathtubs.

Features

• Multiple types of valves including ball, manual, and spring loaded
• Variety of finishings
• Range of size and diameters

Application

• Plumbing
• Building Maintenance

Associated products

48-1

Clips

From the trusted RS PRO brand, the range of spring clips are highly versatile. With a solid steel construction, the clip is easily mounted by a screw hole.

Features

• Nylon Coated or bare steel
• Designed to be inserted and taken out at will
• Variety of sizes

Application

• Tool retaining clip
• Fix pipes or hose by simply clicking them into place.
• Custom Cable Management

48-2

Tool Kits

RS PRO has a range of high-quality complete tool kits, tool boxes and tool sets at an affordable price to suit all your requirements.

Features

• Several sizes of complete Electrical & Mechanical Tool Kits
• Ranges of Screwdriver, cutter and Plier sets available
• VDE 1000V kits
• Kits come in tool bags, tool boxes and Wallets
• All tools have a 3 year warranty

Application

• maintenance of industrial sites
• Panel Shops
• Machine Building
• Every Engineering and Industrial projects needs reliable tools

48-3

Tapes

RS PRO has a complete ranges of industrial quality tapes for all application

Features

• Electrical Tapes
• Foam Insulation Tapes
• Masking Tapes
• PTFE Tape
• Double sided tapes
• Hazard and Barrier Tapes

Application

• Insulating electrical wiring and terminals
• Zoning or masking areas in the workplace
• Sealing joints
• To crate an adhesive surface
• Insulation requirements

RS PRO

Buying Guide

Electric Heaters

Click a range to view online

49-1

Electric Heaters

The RS PRO range of electric heaters meets a variety of industrial applications for environments.

Features

• Multple types of cartridge, quartz and mat
• Variety of sizes to fit multiple applications

Application

• Plastics and Packaging
• Medical Care
• Test Instruments
• Liquid Immersion
• Hot Stamping

Associated products

49-1

Power Supply (AC-DC Power Supplies)

The power supplies provide parallel operation, over voltage protection and overcurrent protection. There is an LED inductor for power status, PFC options and the power supply is certified to UL.

Features

• DIN Rail Mounted
• Interchangeable Plug-in Power Supplies
• Encapsulated Power Supplier
• Desktop Power Supplies
• RS PRO Switch Mode Power Supplies

Application

• Process control
• Factory automation
• Traffic and transportation system
• Other industrial applications

49-2

Multimeters

A digital multimeter is a device that provides measurements of circuit parameters such as voltage (volts), currents (amps) and resistance (ohms).

Features

• LCD
• LED
• Milliohm Meter
• Voltage Range: 300-1000 VAC/DC
• Current Rating: 1 kA to 600 A

Application

Measuring AC Current, AC Voltage, Capacitance, Conductance, Continuity, Current, DC Current, DC Voltage, Diode or Diode Test, Duty Cycle, Frequency, Harmonics or Total Harmonic Distortion, and much more.

49-3

Thermocouples

A thermocouple is a device which measures temperature. It is made up of two wires of different metals that, when joined together, create an electrical junction. When the temperature changes at this junction it creates a voltage which can be interpreted to read the temperature. This is also known as the Seebeck effect.

Features

• Type J, K and T
• Temperature Range: -148°F to 2282°F
• Multiple connection types including Miniature Plug/Socket and wire
• Variety of wire colors combinations

Application

• Thermostats
• Hospital thermometers
• Vehicle diagnostics
• Boiler/heating sensors
• Oven safety features
• Food thermometers
• Industrial probes/sensor
• Ideal tools for temperature measurement
• Robust yet affordable solutions

RS PRO

Buying Guide

DC Gearmotors

Click a range to view online

50-1

DC Gearmotors

DC geared motors are a type of DC motor with a gear assembly attached. This increases the torque and reduces the speed for use in electronic devices that require different speeds.

Features

• Nominal Voltage Range: 3 VDC to 24 VDC
• Speed up to 13500 RPM
• Expansive range of torque options
• Gear Type: Spur and Planetary

Application

• Medical applicatons including: wheelchairs, hospital beds, table lifts, and power seats
• Automotive

Associated products

50-1

Power Supply (AC-DC Power Supplies)

The power supplies provide parallel operation, over voltage protection and overcurrent protection. There is an LED inductor for power status, PFC options and the power supply is certified to UL.

Features

• DIN Rail Mounted
• Interchangeable Plug-in Power Supplies
• Encapsulated Power Supplier
• Desktop Power Supplies
• RS PRO Switch Mode Power Supplies

Application

• Process control
• Factory automation
• Traffic and transportation system
• Other industrial applications

50-2

Transformers

Transformers are used in a variety of environments to converts one electrical circuit from one electrical circuit to another.

Features

• Power rating up to 1500VA
• Thru-hole, Screw and lead wire termination options
• Many mounting options available including both DIN Rail and panel

Application

• Autotransformer
• Chassis Mounting
• Current Transformers
• DIN Rail & Panel Mount
• PCB
• Wall Mount Transformers

50-3

Multiconductor Cables

These flexible cables offer various degrees of protection against electrical interference and resistance to caustic substances and oils.

Features

• AWG Range: 9-30
• Length ranging from 16 feet to 1900 feet
• UL Approved

Application

• General purpose wiring circuits
• Control circuits
• Internal appliance wiring
• Switchgear wiring

RS PRO

Buying Guide

Potentiometers

Click a range to view online

51-1

Potentiometers

A potentiometer is a variable resistor. Potentiometers enable you to regulate and change the current flowing through a circuit. Potentiometers can also be called pots or potmeters.

Features

• Resistance up to 50 kOhms
• Panel and through hole mounting
• Variety of Shaft Diameters

Application

• Medical Equipment
• Processing Machines
• Pots control many types of equipment functions.

Associated products

51-1

Crimp Terminals

From crimp ring terminals to bootlace ferrules and butt splices, we stock a wide range of electrical terminals and splices for use with varying wire types and sizes.

Features

• Multiple Terminal sizes to work with a variety of wire and cable
• Wide array of termiation options including ring and tab
• Insulated and uninsulated options avaiable in multiple colors

Application

• Control Panels
• Automotive build
• Telecommunications
• Prototyping
• Electronics and Engineering
• Test & Measurement

51-2

Hook-Up Wire

Hook up wire can be used for internal wiring of electrical and electronic equipment. Hook-up wire is in the family of lead wire that may be used for low-voltage, low current applications and is a single insulated conductor.

Features

• 3 AWG to 28 AWG wire sizes in the range
• Many color options
• Up to 6kV rated wire available
• Applications from 2A to 136A
• UL approved

Application

• Control Panels
• Automotive build
• Meters
• Wiring Computers and appliances
• Electronic Equipment

51-3

Audio & Video Connectors

Audio and video connectors are used in conjunction with cabling connectors are key components for presenting audio and video through cabling so that the receiver can get audio and/or video signals.

Features

• Range of Sizes
• Multiple mounting options
• Types include cable connectors and adapters

Application

• Headphone/audio jacks
• Professional audio and video equipment
• Transmitting digital audio and video signal

RS PRO

Buying Guide

Cabinet & Rack Panels

Click a range to view online

52-1

Cabinet & Rack Panels

Rack panels protect the equipment from dirt and dust and lend a finished look to the rack unit, while allowing sufficient ventilation.

Features

• Rack Panels come in multple sizes
• Multiple finishes available including black, grey, and unpainted aluminum

Application

• Electrical wiring
• Maintenance
• Domestic
• Food and beverage
• Manufacturing

Associated products

52-1

Network (Cat 5/6) Cables

A range of Cat 5/6 cables perfect for network connections within the home, office spaces or any area requiring a reliable and high performing internet connection. Ethernet cables come in various shapes and sizes, but quality is something which should never be overlooked, as a reliable connection can make a huge difference to company performance. All models are highly reliable and excellent quality.

Features

• Available in a variety of colors
• Lengths from 1.5Ft to 100Ft
• UTP and FTP shielding versions available
• Large range of Low Smoke Zero Halogen options

Application

• Office Computer Hardware
• Data Centers
• PLCs
• Industrial Networking

52-2

Hook-Up Wire

Hook up wire can be used for internal wiring of electrical and electronic equipment. Hook-up wire is in the family of lead wire that may be used for low-voltage, low current applications and is a single insulated conductor.

Features

• 3 AWG to 28 AWG wire sizes in the range
• Many color options
• Up to 6kV rated wire available
• Applications from 2A to 136A
• UL approved

Application

• Control Panels
• Automotive build
• Meters
• Wiring Computers and appliances
• Electronic Equipment

52-3

Tool Kits

RS PRO has a range of high-quality complete tool kits, tool boxes and tool sets at an affordable price to suit all your requirements.

Features

• Several sizes of complete Electrical & Mechanical Tool Kits
• Ranges of Screwdriver, cutter and Plier sets available
• VDE 1000V kits
• Kits come in tool bags, tool boxes and Wallets
• All tools have a 3 year warranty

Application

• maintenance of industrial sites
• Panel Shops
• Machine Building
• Every Engineering and Industrial projects needs reliable tools

RS PRO

Buying Guide

Measuring Tools

Click a range to view online

53-1

Measuring Tools

The RS PRO range of measuring tools includes many different types of instruments to meet many applications.

Features

• Rulers
• Calipers
• Tape measures
• Micrometres
• Dial indicators
• Distance meters
• Feeler gauges

Application

• Building Maintenance
• Engineering
• Eletrical Maintenance
• Automotive Applications

Associated products

53-1

Tool Kits

RS PRO has a range of high-quality complete tool kits, tool boxes and tool sets at an affordable price to suit all your requirements.

Features

• Several sizes of complete Electrical & Mechanical Tool Kits
• Ranges of Screwdriver, cutter and Plier sets available
• VDE 1000V kits
• Kits come in tool bags, tool boxes and Wallets
• All tools have a 3 year warranty

Application

• maintenance of industrial sites
• Panel Shops
• Machine Building
• Every Engineering and Industrial projects needs reliable tools

53-2

Meters

Range of testers for all types of industrial and Environmental application

Features

• Voltage Testers
• Network Cable Testers
• Environmental Testers
• Insulation Testers
• Gas Leak Detectors
• Battery Testers

Application

• Testing gas/voltage network connections
• Site testing
• Energy and Environmental Testing

53-3

Multi-Use Tools

Multi-tools feature multiple pieces of equipment in one simple, compact tool. Each piece usually folds away into the tool for easy portability too. Multi-tools are a key item in most tool boxes and tool belts as they often save having to carry lots of tools at once.

Features

• Stainless Multitool with a variety of useful tools
• Cabinet Keys in both Zinc Alloy and Aluminum

Application

• Variety of tools to fit maintenance needs

RS PRO

Buying Guide

Wire Strippers

Click a range to view online

54-1

Wire Strippers

Wire strippers are a hand-held tool designed to remove insulation or outer sheath from electrical wires. There are various types available from stripping the cable to cutting copper and conduit. Each is made with high-quality components to produce the best wire stripper tool for your application.

Features

• Multiple stripper options to work with a variety of wire and cable

Application

• Electrical
• Mechanics
• Electrical cable installations
• Telecommunications

Associated products

54-1

Wire Cutters

Range of over 50 high quality, general purpose, engineers cutters ergonomically designed for maximum leverage and comfort

Features

• Cutter lengths from 4" to 30"
• Range includes VDE 1000V options
• All cutters made from high grade hardened steel
• 3 year warranty

Application

• Wiring Panels and Cabinets
• Power installations
• Factory Maintenance
• Machine Builders
• Electrical Contractors

54-2

Crimpers

A crimping tool allows you to quickly seal the connector to the end of the cable by compressing the connector against the cable. What you are left with is called a crimp.

Features

• Multiple options to work with a variety of terminals, wire and cable
• Precision eccentric adjustment for consistent performance and ability to calibrate

Application

• Control Panels
• Automotive build
• Telecommunications
• Prototyping
• Electronics and Engineering
• Test & Measurement

54-3

Tool Kits

RS PRO has a range of high-quality complete tool kits, tool boxes and tool sets at an affordable price to suit all your requirements.

Features

• Several sizes of complete Electrical & Mechanical Tool Kits
• Ranges of Screwdriver, cutter and Plier sets available
• VDE 1000V kits
• Kits come in tool bags, tool boxes and Wallets
• All tools have a 3 year warranty

Application

• maintenance of industrial sites
• Panel Shops
• Machine Building
• Every Engineering and Industrial projects needs reliable tools

RS PRO

Buying Guide

Audio & Video Connectors

Click a range to view online

55-1

Audio & Video Connectors

Audio and video connectors are used in conjunction with cabling connectors are key components for presenting audio and video through cabling so that the receiver can get audio and/or video signals.

Features

• Range of Sizes
• Multiple mounting options
• Types include cable connectors and adapters

Application

• Headphone/audio jacks
• Professional audio and video equipment
• Transmitting digital audio and video signal

Associated products

55-1

Coaxial/RF Adapters

An RF Coaxial adapter is a single piece component allowing the connection of two different pieces of equipment that cannot be joined directly.

Features

• Variety of contact plating
• 50 and 75 Ohm
• Variations of jack, plug and BNC

Application

• Laboratory
• Test and measurement
• Communications
• Base stations
• GPS
• LAN
• Antennas

55-2

Coaxial/RF Cables

Coaxial cables are electrical cables with an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield.
Coax cables are durable, easy to install and are designed to carry signals over long distances.

Features

• Variety of connector types and angle combinations
• Cable type options available for different applications
• Shielding and insulation options available
• Cable lengths up to 20 feet

Application

• Laboratory
• Test and measurement
• Communications
• Base stations
• GPS
• LAN
• Antennas

55-3

Digital (DVI, HDMI) Cables

Digital leads can be used within both industrial and residential installations making them ideal for homes, offices and schools

Features

• HDMI, DVI, VGA and Displayport connections
• Cable lengths up to 150ft
• Standard and gold plated connectors in the range

Application

• High speed sound and vision transfer
• PC monitors
• High resolution applications

RS PRO

Buying Guide

Drill and Step Bits

Click a range to view online

56-1

Drill and Step Bits

Drill and Step bits are cutting tools that are used to remove different types of materials to create a hole, generally always in a circular motion. Having the right size and the right type of bit is a key factor in ensuring the highest standard of work and ensures you can drill with confidence and accuracy.

Features

• Range includes a variety of bits to suit any type of material
• Multiple metals to suit job requirements
• Diameters ranging from 0.01" to 1.25"

Application

• Masonry
• Wood Working
• Maintenance
• Engineering

Associated products

56-1

Tool Kits

RS PRO has a range of high-quality complete tool kits, tool boxes and tool sets at an affordable price to suit all your requirements.

Features

• Several sizes of complete Electrical & Mechanical Tool Kits
• Ranges of Screwdriver, cutter and Plier sets available
• VDE 1000V kits
• Kits come in tool bags, tool boxes and Wallets
• All tools have a 3 year warranty

Application

• maintenance of industrial sites
• Panel Shops
• Machine Building
• Every Engineering and Industrial projects needs reliable tools

56-2

Screw & Nut Sets

When you need quick, handy access to a wide array of standard-sized nuts, screws, bolts, washers, or all of the above, a high-quality fastener kit is useful to have on hand no matter what the job.

Features

• Range includes a variety of screws and nuts to suit any type of project
• Multiple drive types
• Large range of head shapes

Application

• Masonry
• Wood Working
• Maintenance
• Engineering

56-3

Standoff

From RS PRO a range of robust, high-quality hexagonal shaped standoffs with a metric internal thread or threaded stud on either end. These versatile standoffs are designed to securely mount your PCB as well as elevating it from other components such as the inside of a computer chassis or another PCB.

Features

• Male/Female or Female/Female options
• M3 to M6 thread types
• Brass, Nylon or Steel versions

Application

• Improving airflow space around components on a PCB board
• Separate a PCB by a set distance from other components

RS PRO

Buying Guide

Ethernet Switches

Click a range to view online

57-1

Ethernet Switches

Industrial hubs are the devices used to connect several Ethernet devices together at one time. They then function as a single network together.

Features

• Up to 8 ports
• DIN rail mounting options
• Industrial temperature range

Application

• Automation industries
• Energy industries
• Machinery & robotics industries
• Transportation industries

Associated products

57-1

Network (Cat 5/6) Cables

A range of Cat 5/6 cables perfect for network connections within the home, office spaces or any area requiring a reliable and high performing internet connection. Ethernet cables come in various shapes and sizes, but quality is something which should never be overlooked, as a reliable connection can make a huge difference to company performance. All models are highly reliable and excellent quality.

Features

• Available in a variety of colors
• Lengths from 1.5Ft to 100Ft
• UTP and FTP shielding versions available
• Large range of Low Smoke Zero Halogen options

Application

• Office Computer Hardware
• Data Centers
• PLCs
• Industrial Networking

57-2

Hook-Up Wire

Hook up wire can be used for internal wiring of electrical and electronic equipment. Hook-up wire is in the family of lead wire that may be used for low-voltage, low current applications and is a single insulated conductor.

Features

• 3 AWG to 28 AWG wire sizes in the range
• Many color options
• Up to 6kV rated wire available
• Applications from 2A to 136A
• UL approved

Application

• Control Panels
• Automotive build
• Meters
• Wiring Computers and appliances
• Electronic Equipment

57-3

Telecom Connectors

Network and telecom connectors include the popular RJ–the acronym stands for Registered Jack–connectors, which are used to transmit data and to provide telephony services all over the world. The connectors include designs that are intended for very rugged use, and designs that are intended for everyday use in environments such as offices.

Features

• Range of adaptors and sockets for RJ45 and RJ11 connections
• Panel, PCB and press fit installation options
• 2-26 contact versions available
• Gold plated options included in the range

Application

• Office networking
• Electronic circuit boards
• Industrial Networking including PLC's
• PC hardware, including printers, docking stations
• Medical hardware

RS PRO

Buying Guide

Digital (DVI, HDMI) Cables

Click a range to view online

58-1

Digital (DVI, HDMI) Cables

Digital leads can be used within both industrial and residential installations making them ideal for homes, offices and schools

Features

• HDMI, DVI, VGA and Displayport connections
• Cable lengths up to 150ft
• Standard and gold plated connectors in the range

Application

• High speed sound and vision transfer
• PC monitors
• High resolution applications

Associated products

58-1

Audio & Video Connectors

Audio and video connectors are used in conjunction with cabling connectors are key components for presenting audio and video through cabling so that the receiver can get audio and/or video signals.

Features

• Range of Sizes
• Multiple mounting options
• Types include cable connectors and adapters

Application

• Headphone/audio jacks
• Professional audio and video equipment
• Transmitting digital audio and video signal

58-2

Network (Cat 5/6) Cables

A range of Cat 5/6 cables perfect for network connections within the home, office spaces or any area requiring a reliable and high performing internet connection. Ethernet cables come in various shapes and sizes, but quality is something which should never be overlooked, as a reliable connection can make a huge difference to company performance. All models are highly reliable and excellent quality.

Features

• Available in a variety of colors
• Lengths from 1.5Ft to 100Ft
• UTP and FTP shielding versions available
• Large range of Low Smoke Zero Halogen options

Application

• Office Computer Hardware
• Data Centers
• PLCs
• Industrial Networking

58-3

Telecom Connectors

Network and telecom connectors include the popular RJ–the acronym stands for Registered Jack–connectors, which are used to transmit data and to provide telephony services all over the world. The connectors include designs that are intended for very rugged use, and designs that are intended for everyday use in environments such as offices.

Features

• Range of adaptors and sockets for RJ45 and RJ11 connections
• Panel, PCB and press fit installation options
• 2-26 contact versions available
• Gold plated options included in the range

Application

• Office networking
• Electronic circuit boards
• Industrial Networking including PLC's
• PC hardware, including printers, docking stations
• Medical hardware

RS PRO

Buying Guide

Screw & Nut Sets

Click a range to view online

59-1

Screw & Nut Sets

When you need quick, handy access to a wide array of standard-sized nuts, screws, bolts, washers, or all of the above, a high-quality fastener kit is useful to have on hand no matter what the job.

Features

• Range includes a variety of screws and nuts to suit any type of project
• Multiple drive types
• Large range of head shapes

Application

• Masonry
• Wood Working
• Maintenance
• Engineering

Associated products

59-1

Tool Kits

RS PRO has a range of high-quality complete tool kits, tool boxes and tool sets at an affordable price to suit all your requirements.

Features

• Several sizes of complete Electrical & Mechanical Tool Kits
• Ranges of Screwdriver, cutter and Plier sets available
• VDE 1000V kits
• Kits come in tool bags, tool boxes and Wallets
• All tools have a 3 year warranty

Application

• maintenance of industrial sites
• Panel Shops
• Machine Building
• Every Engineering and Industrial projects needs reliable tools

59-2

Standoff

From RS PRO a range of robust, high-quality hexagonal shaped standoffs with a metric internal thread or threaded stud on either end. These versatile standoffs are designed to securely mount your PCB as well as elevating it from other components such as the inside of a computer chassis or another PCB.

Features

• Male/Female or Female/Female options
• M3 to M6 thread types
• Brass, Nylon or Steel versions

Application

• Improving airflow space around components on a PCB board
• Separate a PCB by a set distance from other components

59-3

Knobs

A huge variety of potentiometer knobs are available to suit virtually any application. Most knobs are cylindrical, but rectangular shaped knobs are often used for slider potentiometers.

Features

• Variety of colors and materials
• Diameters from 0.25" up to 3.9"
• Multiple mounting options

Application

• Automation industries
• Energy industries
• Machinery & robotics industries

RS PRO

Buying Guide

Knobs

Click a range to view online

60-1

Knobs

A huge variety of potentiometer knobs are available to suit virtually any application. Most knobs are cylindrical, but rectangular shaped knobs are often used for slider potentiometers.

Features

• Variety of colors and materials
• Diameters from 0.25" up to 3.9"
• Multiple mounting options

Application

• Automation industries
• Energy industries
• Machinery & robotics industries

Associated products

60-1

Standoff

From RS PRO a range of robust, high-quality hexagonal shaped standoffs with a metric internal thread or threaded stud on either end. These versatile standoffs are designed to securely mount your PCB as well as elevating it from other components such as the inside of a computer chassis or another PCB.

Features

• Male/Female or Female/Female options
• M3 to M6 thread types
• Brass, Nylon or Steel versions

Application

• Improving airflow space around components on a PCB board
• Separate a PCB by a set distance from other components

60-2

Tool Kits

RS PRO has a range of high-quality complete tool kits, tool boxes and tool sets at an affordable price to suit all your requirements.

Features

• Several sizes of complete Electrical & Mechanical Tool Kits
• Ranges of Screwdriver, cutter and Plier sets available
• VDE 1000V kits
• Kits come in tool bags, tool boxes and Wallets
• All tools have a 3 year warranty

Application

• maintenance of industrial sites
• Panel Shops
• Machine Building
• Every Engineering and Industrial projects needs reliable tools

60-3

Screw & Nut Sets

When you need quick, handy access to a wide array of standard-sized nuts, screws, bolts, washers, or all of the above, a high-quality fastener kit is useful to have on hand no matter what the job.

Features

• Range includes a variety of screws and nuts to suit any type of project
• Multiple drive types
• Large range of head shapes

Application

• Masonry
• Wood Working
• Maintenance
• Engineering

RS PRO

Buying Guide

Light Strips

Click a range to view online

61-1

Light Strips

LED Light Strips consist of multiple SMD LEDs mounted onto a strip, which can be either a flexible strip (LED tape) or a rigid strip (LED modules). Strip lighting is very easy to use and saves you from having to mount individual lights across a large area.

Features

• Multiple color options available (i.e. white, red)
• Lengths up to 32"
• Luminous intensity from 40 lm to 550lm

Application

• Under cabinet lighting
• Accent lighting in home and in retail
• Shelving illumination
• Walkway illumination

Associated products

61-1

Hook-Up Wire

Hook up wire can be used for internal wiring of electrical and electronic equipment. Hook-up wire is in the family of lead wire that may be used for low-voltage, low current applications and is a single insulated conductor.

Features

• 3 AWG to 28 AWG wire sizes in the range
• Many color options
• Up to 6kV rated wire available
• Applications from 2A to 136A
• UL approved

Application

• Control Panels
• Automotive build
• Meters
• Wiring Computers and appliances
• Electronic Equipment

61-2

Power Supply (AC-DC Power Supplies)

The power supplies provide parallel operation, over voltage protection and overcurrent protection. There is an LED inductor for power status, PFC options and the power supply is certified to UL.

Features

• DIN Rail Mounted
• Interchangeable Plug-in Power Supplies
• Encapsulated Power Supplier
• Desktop Power Supplies
• RS PRO Switch Mode Power Supplies

Application

• Process control
• Factory automation
• Traffic and transportation system
• Other industrial applications

61-3

Multimeters

A digital multimeter is a device that provides measurements of circuit parameters such as voltage (volts), currents (amps) and resistance (ohms).

Features

• LCD
• LED
• Milliohm Meter
• Voltage Range: 300-1000 VAC/DC
• Current Rating: 1 kA to 600 A

Application

Measuring AC Current, AC Voltage, Capacitance, Conductance, Continuity, Current, DC Current, DC Voltage, Diode or Diode Test, Duty Cycle, Frequency, Harmonics or Total Harmonic Distortion, and much more.

RS PRO

Buying Guide

Coaxial/RF Adapters

Click a range to view online

62-1

Coaxial/RF Adapters

An RF Coaxial adapter is a single piece component allowing the connection of two different pieces of equipment that cannot be joined directly.

Features

• Variety of contact plating
• 50 and 75 Ohm
• Variations of jack, plug and BNC

Application

• Laboratory
• Test and measurement
• Communications
• Base stations
• GPS
• LAN
• Antennas

Associated products

62-1

Coaxial/RF Cables

Coaxial cables are electrical cables with an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield.
Coax cables are durable, easy to install and are designed to carry signals over long distances.

Features

• Variety of connector types and angle combinations
• Cable type options available for different applications
• Shielding and insulation options available
• Cable lengths up to 20 feet

Application

• Laboratory
• Test and measurement
• Communications
• Base stations
• GPS
• LAN
• Antennas

62-2

Audio & Video Connectors

Audio and video connectors are used in conjunction with cabling connectors are key components for presenting audio and video through cabling so that the receiver can get audio and/or video signals.

Features

• Range of Sizes
• Multiple mounting options
• Types include cable connectors and adapters

Application

• Headphone/audio jacks
• Professional audio and video equipment
• Transmitting digital audio and video signal

62-3

Network (Cat 5/6) Cables

A range of Cat 5/6 cables perfect for network connections within the home, office spaces or any area requiring a reliable and high performing internet connection. Ethernet cables come in various shapes and sizes, but quality is something which should never be overlooked, as a reliable connection can make a huge difference to company performance. All models are highly reliable and excellent quality.

Features

• Available in a variety of colors
• Lengths from 1.5Ft to 100Ft
• UTP and FTP shielding versions available
• Large range of Low Smoke Zero Halogen options

Application

• Office Computer Hardware
• Data Centers
• PLCs
• Industrial Networking

RS PRO

Buying Guide

Pneumatic Fittings

Click a range to view online

71-1

Pneumatic Fittings

Pneumatic fittings and adapters are used to connect lengths of tubing, pipes and hose in pressurized pneumatic systems. They typically have tighter seals and lower pressure requirements compared to hydraulic fittings and can be commonly found in robotics within production lines as well as products we use within our daily lives such as vacuums and tire pressure gauges.

Features

• Connection types include: Barbed, Push to Connect, Quick Connect and Threaded
• Assortment includes Coupling, Elbow and Fitting
• Both male and female type options
• Work with tube sizes from 3 mm up to 10 mm
• Multiple material options

Application

• Food and Beverage
• Production Lines

Associated products

71-1

Tubing / Hoses

Air hose comes in a range of sizes, with different operating temperatures and pressures. Understanding the maximum values for your intended application is critical to ensuring the safety of the user, as well as the integrity and longevity of the hose.

Features

• Flexible for ease of use
• Simple to install in or around workspace
• Easy to cut to length
• Wide range of diameters

Application

• Food and Beverage
• Production Lines

71-2

Pressure Switches

Pressure and vacuum switches are used in pneumatic systems to allow pressure or vacuum to flow from one place to another, ensuring that the overall system remains stable. They form part of the control system, ensuring that optimal conditions are maintained.

Features

• Pressure type include adjustable, adjustable positive and electromechanical
• Wide range of operating pressure
• Multiple material options including stainless steel, steel and aluminum

Application

• Food and Beverage
• Production Lines

71-3

Fitting Accessories

Pneumatic fittings are predominantly made from three different types of material; plastic, stainless steel and polymer.

Features

• Quick connect options
• Variety of materials used to meet different specifications

Application

• Food and Beverage
• Production Lines

RS PRO

Buying Guide

Wire Duct

Click a range to view online

72-1

Wire Duct

Wire duct is a system used to organize and protect electrical cables or wires in buildings or industrial settings. It provides a safe and tidy way to route and conceal cables, improving the overall appearance and safety of the installation. Wire duct typically consists of a rectangular or square-shaped enclosure made of plastic, metal, or sometimes rubber. The enclosure has a removable or hinged cover, allowing easy access to the cables when necessary.

Features

• Various materials (plastic/metal)
• Slotted/unslotted/flexible/self adhesive options
• Top cover included with wire duct

Application

• Cable Protection
• Cable Organization
• Safety and Aesthetics

Associated products

72-1

Wire Duct Cutters

Manually operated, wire duct cutters provide the best and most efficient solution for cutting wiring duct in a quick and safe way.

Features

• Cuts easily through wiring ducts and uneven panels
• Cuts angled objects up to 45 degrees
• Cuts wire duct smoothly and burr-free

Application

• Wire Duct Cutting

72-2

Hook-Up Wire

Hook up wire can be used for internal wiring of electrical and electronic equipment. Hook-up wire is in the family of lead wire that may be used for low-voltage, low current applications and is a single insulated conductor.

Features

• 3 AWG to 28 AWG wire sizes in the range
• Many color options
• Up to 6kV rated wire available
• Applications from 2A to 136A
• UL approved

Application

• Control Panels
• Automotive build
• Meters
• Wiring Computers and appliances
• Electronic Equipment

72-3

Electrical Enclosures

Enclosures are present in almost every industry and can store all manor of items, such as medical equipment or electronics. These boxes are rated at IP66 and provide an excellent degree of protection, indoor or outdoor.

Features

• Desktop, Wall and Panel Mounting options
• NEMA 4X and 6P Rating
• Variety of sizes and options
• Multiple color options including gray and black

Application

• Building electrical and telecommunication rooms
• Manufacturing plants
• Utilities
• Industrial Applications

RS PRO

RS PRO Solutions

For a better user experience, please turn your mobile device to portrait orientation.
